Removing Front Seat-Surface Extension

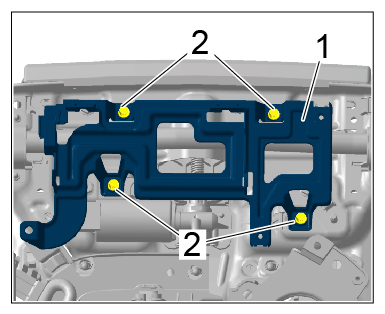

1. Remove holder for memory seat adjustment control unit -1-  .
   1. 1.1 Unscrew and remove screws -2-  .
   2. 1.2 Remove holder for memory seat adjustment control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

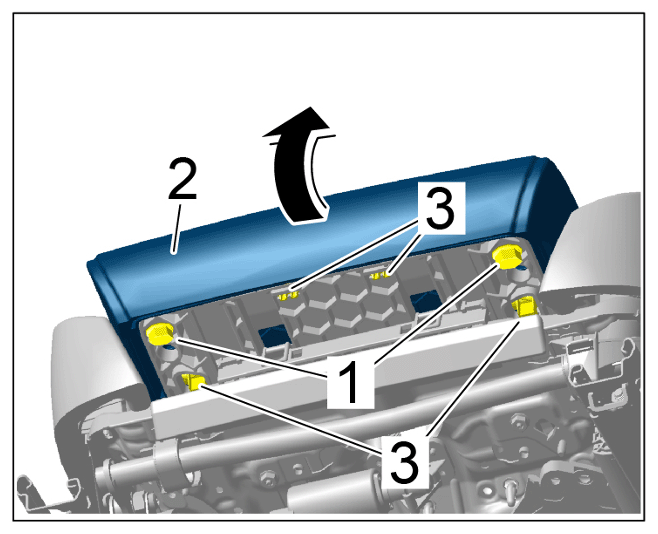

2. Detach padding for seat-surface extension -2-  .
   1. 2.1 Unscrew and remove screws -1-  .
   2. 2.2 Unclip padding for seat-surface extension -3-  .
   3. 2.3 Place padding for seat-surface extension -2-  on padding for front seat -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Padding for seat-surface extension

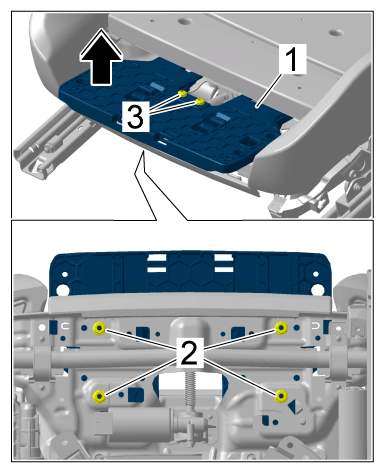

3. Remove front seat-surface extension -1-  .
   1. 3.1 Unscrew nuts -2-  .
   2. 3.2 Unscrew and remove screws -3-  .
   3. 3.3 Remove front seat-surface extension -1-  by pulling it up -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat-surface extension, front
