Removing Front Height Adjustment Motor

  1. Release and disconnect electric plug connection -1-  on front height adjustment motor -2-  .
    G15534504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front height adjustment motor

  2. Remove front height adjustment motor -2-  .
    1. 2.1  Unscrew and remove screws -1-  .
    2. 2.2  Pull front height adjustment motor -2-  out of the seat frame -arrow-  .

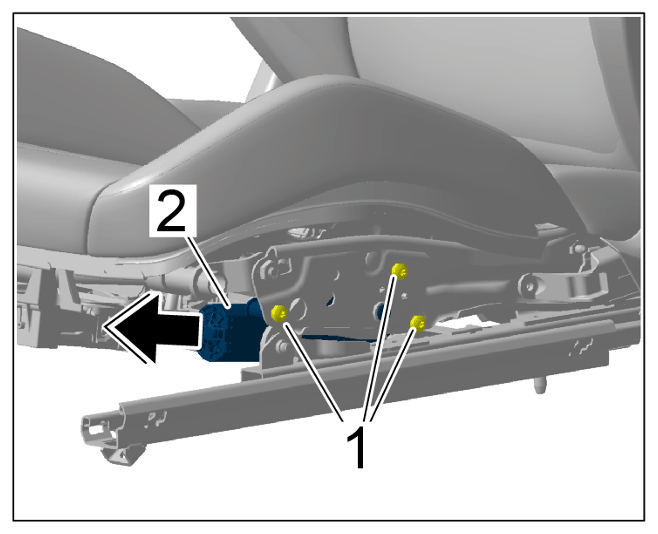

      G15534505Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front height adjustment motor
