Removing Motor For Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

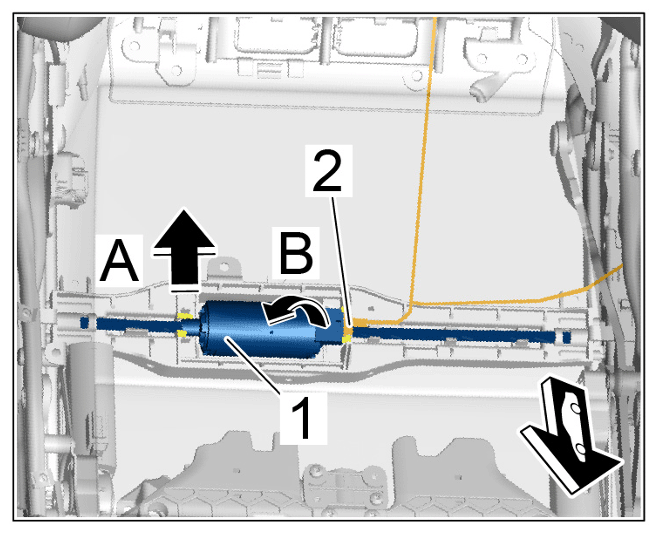

1. 2.1  Unclip -1-  seat-adjustment motor -arrow A-  .
2. 2.2  Swivel out -1-  seat-adjustment motor -arrow B-  .
3. 2.3  Release and unplug electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Motor for seat adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

Information

The drive shafts are tensioned slightly.

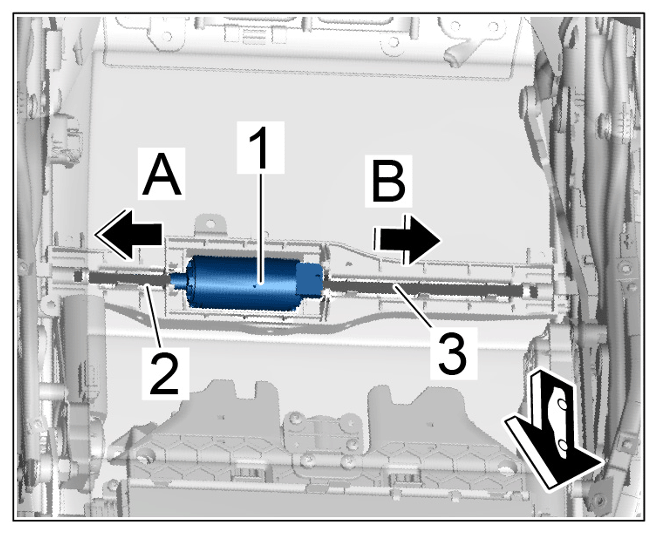

1. 4.1  Pull seat-adjustment motor -1-  off the short drive shaft -2-  (-arrow B-  ).
2. 4.2  Pull seat-adjustment motor -1-  off the long drive shaft -3-  (-arrow A-  ).
3. 4.3  Pull out the drive shafts, -2 and 3-  check for damage and replace if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Motor for seat adjustment
