Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing front seat adjustment switch to seat Item 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)

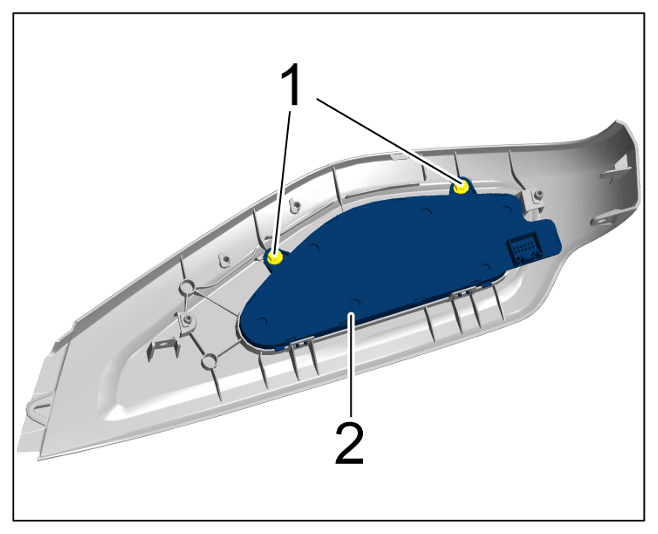

G15534494Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch for memory seat adjustment
