Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

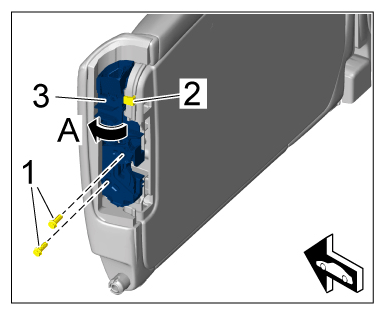

| Screws securing locking mechanism for rear backrest to rear backrest frame | Item 1 | Tightening torque | 10 Nm (7.5 ftlb.) | + 2 Nm (1.5 ftlb.) | |
|
Locking mechanism for rear backrest |
|||||

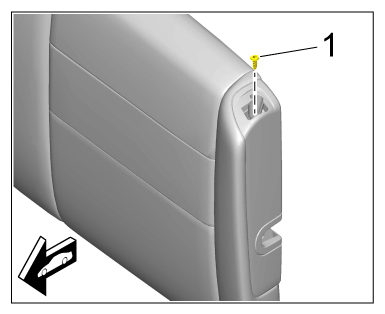

| Screw securing locking mechanism for backrest to rear backrest | Item 1 | Tightening torque | 1, 5 Nm | +/- 0, 3 Nm | |
|
Locking mechanism for rear backrest |
