Removing Locking Mechanism For Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuating lever on locking mechanism for rear backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism for rear backrest

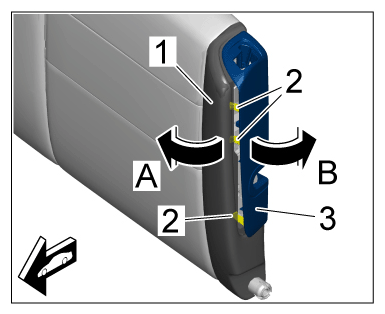

1. 3.1  Pull cushion -1-  at the front slightly away from cover on lock for rear backrest. -arrow A-
2. 3.2  Unclip retaining lugs -2-  .
3. 3.3  Remove cover on lock for rear backrest -3-  (-arrow B-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on lock for rear backrest

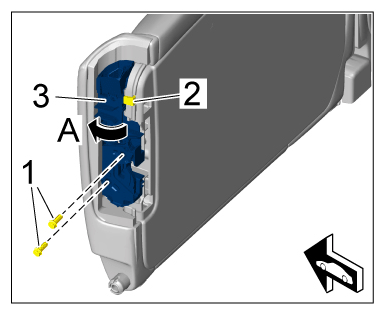

1. 4.1  Unscrew and remove screws -1-  .
2. 4.2  Unclip locking mechanism for rear backrest -3-  at the locking lug -2-  (-arrow A-  ) and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking mechanism for rear backrest
