Removing Rear Backrest

1. 1.1  Fold rear backrest forward.
2. 1.2  Unclip cover on rear part -1-  by pulling it upwards -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on rear part

1. 2.1  Fold rear backrest to the rear.
2. 2.2  Lever off cover on front part -1-  using > T10118 - assembly tool  at the left and right -arrows A and B-  and unclip it by pulling it forward -arrow C-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

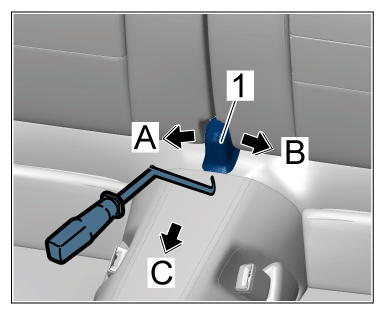

   Cover on front part

1. 3.1  Hold rear backrest securely in tilted position by actuating the seat adjustment lever.
2. 3.2  Push centre rear backrest towards the centre of the vehicle -arrow A-  until mount for centre rear backrest -1-  is released in the centre rear bearing support -2-  .
3. 3.3  Guide mount for centre rear backrest -1-  up and out -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

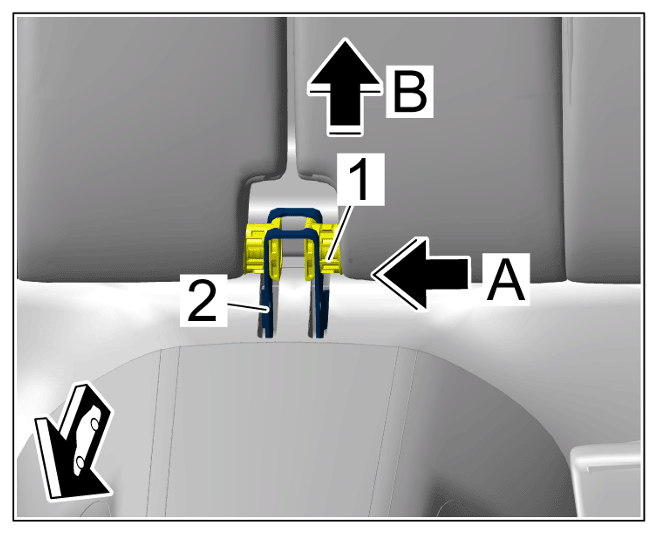

   Mount for centre rear backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

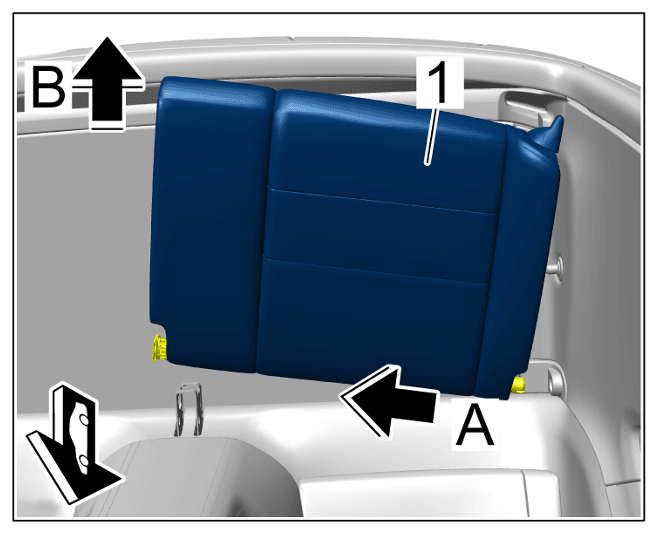

Rear backrest
