Removing Control Valve For Air Cushion

Information

• The number of screws, clips, electric plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some steps must be carried out automatically.

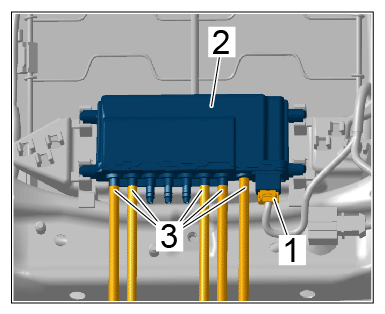

1. Disconnect connections on control valve for air cushion -2-
   1. 1.1  Release and unplug electric plug connection -1-
   2. 1.2  Disconnect air lines -3-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control valve for air cushion

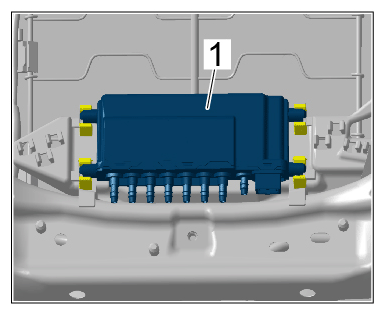

2. Unclip control valve for air cushion -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control valve for air cushion
