Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Body & Frame >> Seats >> 72 Seat Frames -- 992 - 911 CARRERA (992) >> WM, 723655 Replacing Lumbar-Support Motor >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

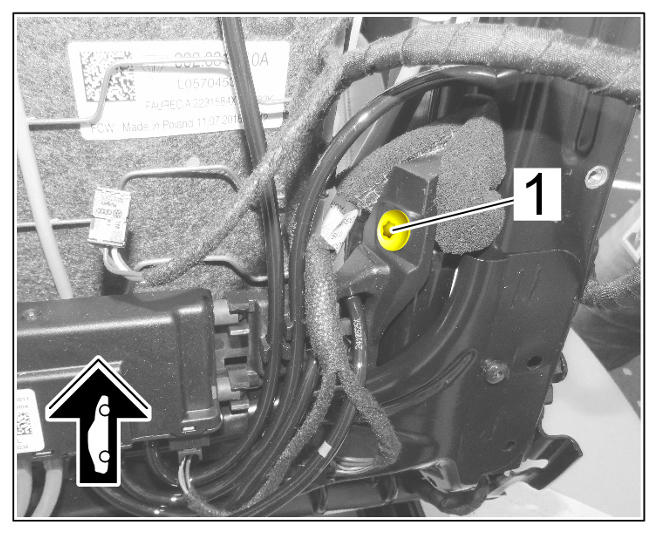

Screw securing lumbar-support motor to seat Item 1 Tightening torque 1.2 Nm (0.8 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15534473Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
