Removing Lumbar-Support Motor

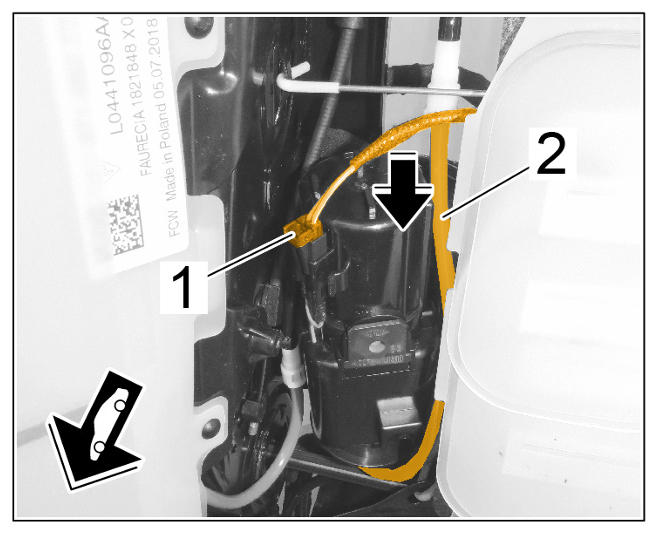

Release and disconnect electric plug connection -1- and air connection line -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

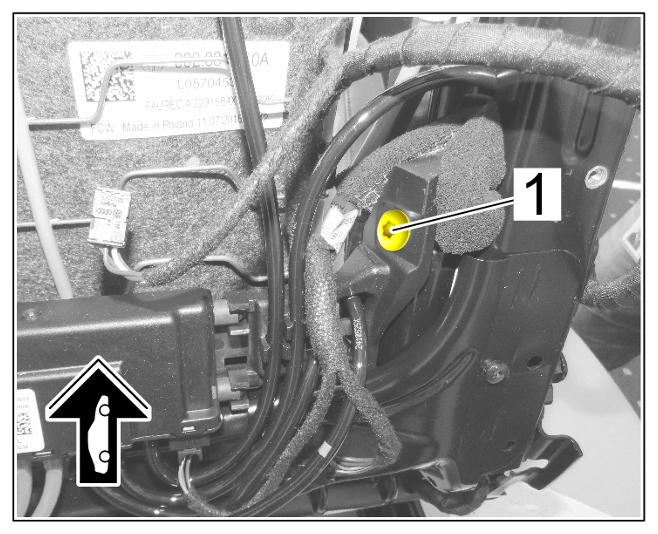

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

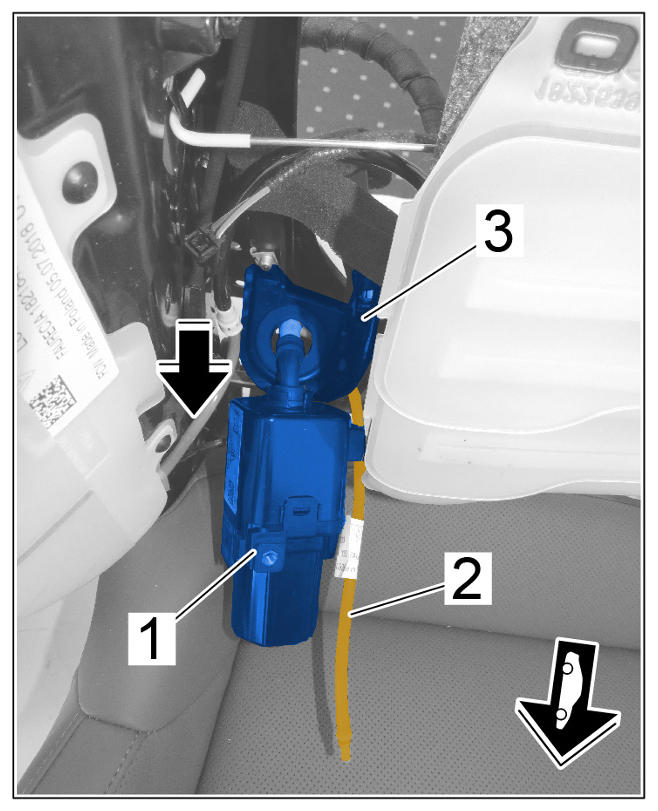

Guide lumbar-support motor -1- with air connection line -2- out of the air cushion control valve holder -3- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lumbar-support motor
