Removing Lumbar Support

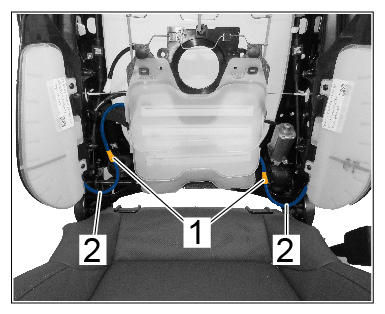

Disconnect quick connector -1- on air hoses for air cushion for backrest -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Quick connector

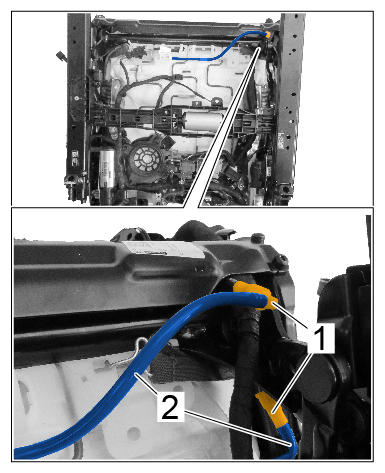

Disconnect quick connector -1- on air loses for air cushion for backrest -2- and guide it out by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Quick connector

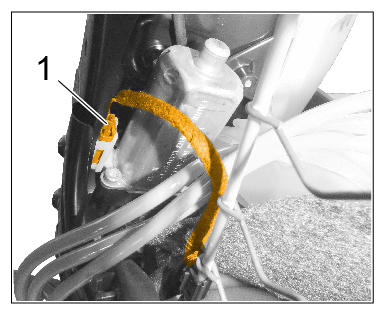

Release and disconnect electric plug connection on backrest adjustment motor -l- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

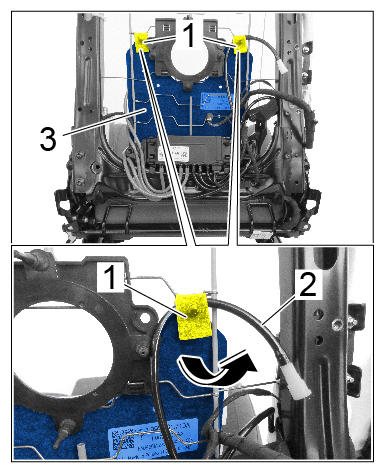

Loosen lumbar support -3- .

4.3 Set lumbar support -3- down on the seat cushion.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lumbar support

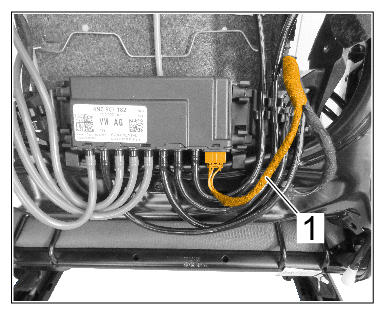

Release and disconnect electric plug connection for control valve for lumbar support -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

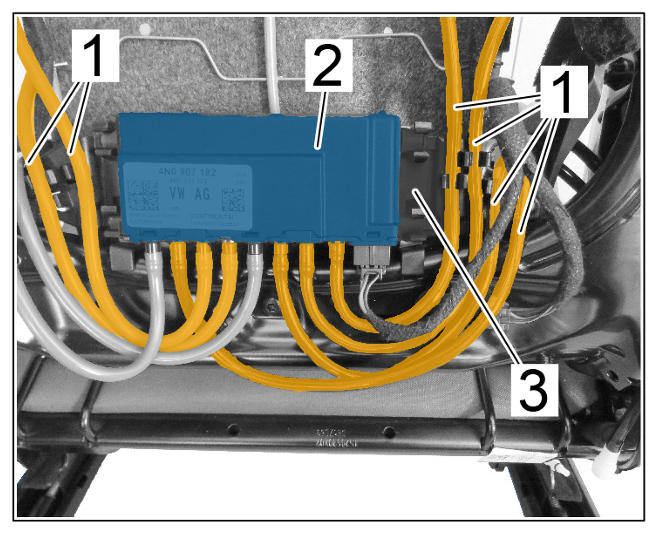

Unclip air hoses -1- and control valve for lumbar support -2- from holder -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air hoses

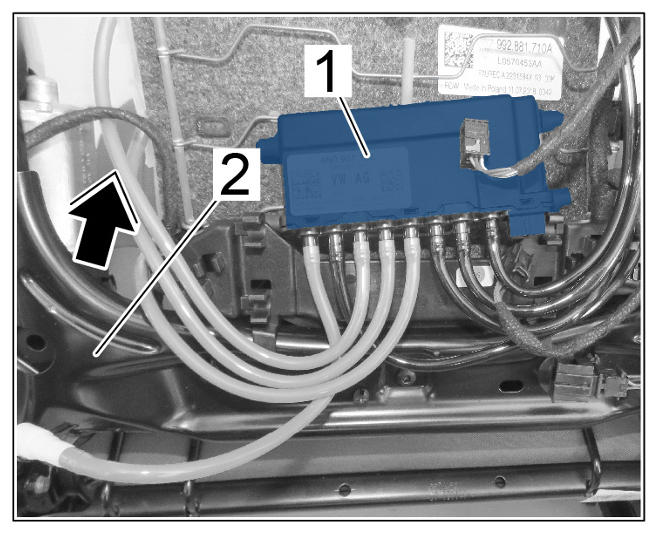

Guide control valve for lumbar support -1- with the left air hoses forward through the backrest frame -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control valve for lumbar support
Remove lumbar support with control valve for lumbar support.
