Removing Backrest Cover

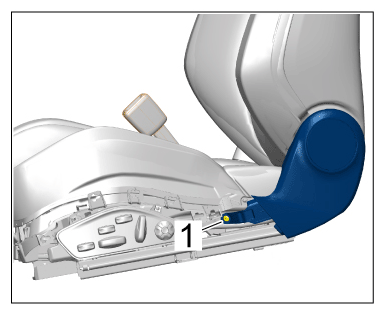

  1. Unscrew screw -1-  .
    G15534463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

    Information

    Make sure not to damage the backrest cover when removing it.

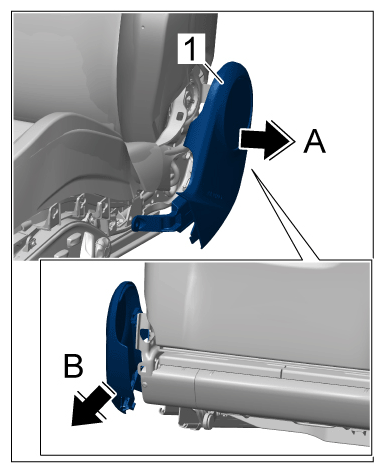

  2. Unclip backrest cover -1-  at the front -arrow A-  and guide it out at the rear -arrow B -  .
    G15534464Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest cover
