Removing Cushion Carrier For Front Backrest

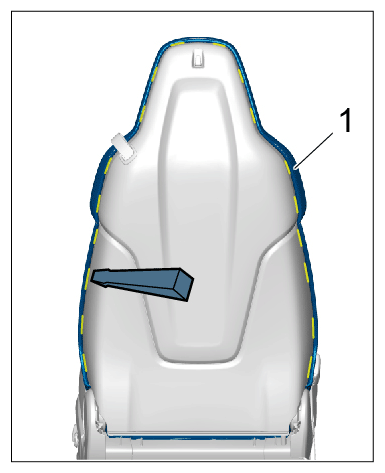

  1. Unclip backrest cover -1-  all the way around using a plastic wedge.
    G15534452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest cover

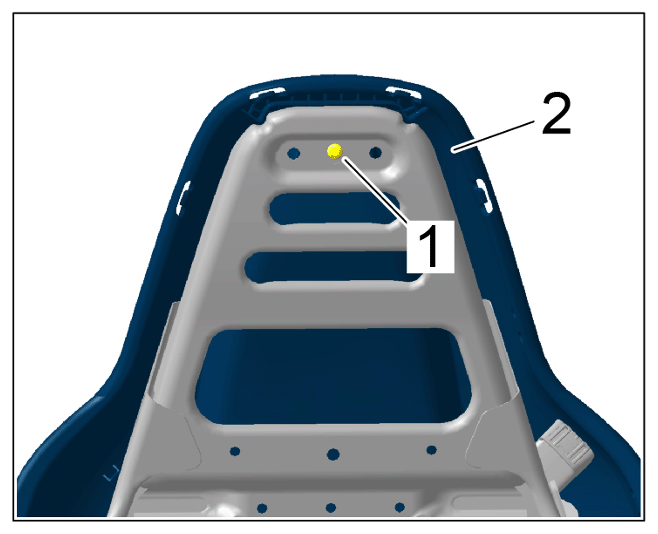

  2. Unscrew screw -1-  from cushion carrier for front backrest -2-  .
    G15534453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

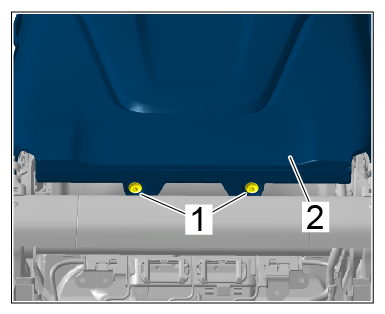

  3. Remove expanding clips -1-  and remove cushion carrier for front backrest -2-  .
    G15534454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cushion carrier for front backrest

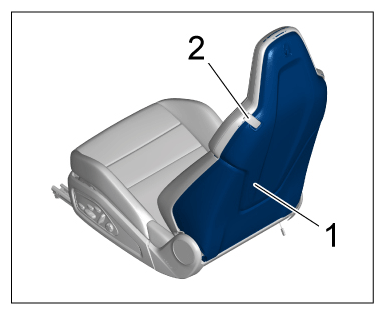

  4. When removing the cushion carrier for front backrest -1-  , guide out the loop for seat operation -2-  .
    G15534455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat operation
