Removing Air Cushion For Backrest

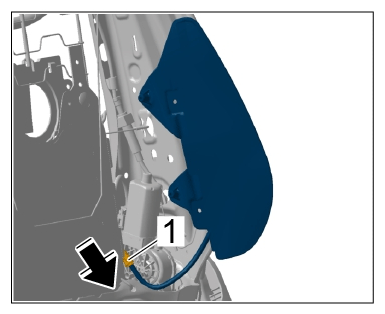

  1. Release hose connection -1-  from motor for backrest air cushion and pull it off -arrow-  .
    G15534436Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose connection

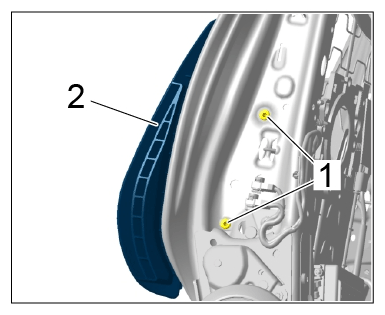

  2. Unscrew screws -1-  on seat backrest and remove air cushion for backrest -2-  .
    G15534437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for backrest
