Removing Trim Panel

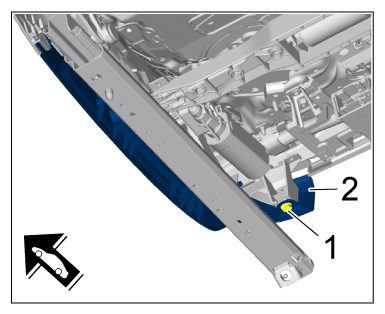

  1. Unscrew front screw -1-  from trim panel -2-  .
    G15534430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front screw

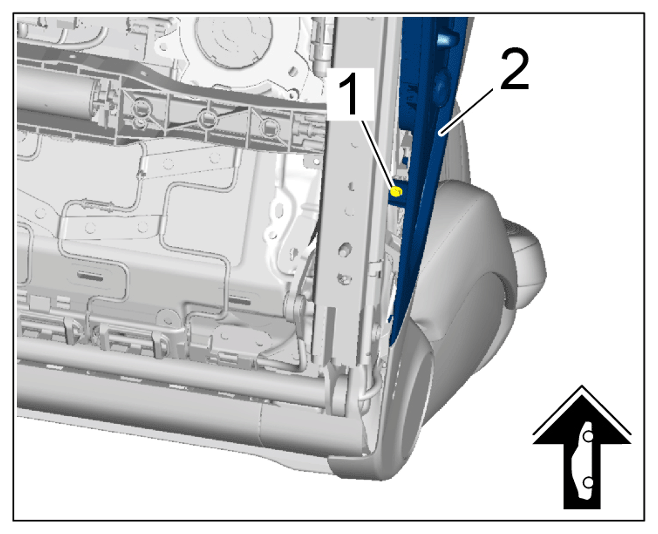

  2. Unscrew rear screw -1-  from trim panel -2-  .
    G15534431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear screw

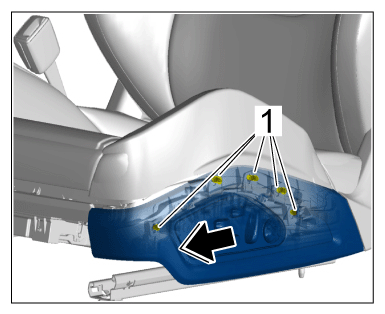

  3. Release locking lugs -1-  from the holder -2-  (-arrow-  ) and remove trim panel until the electric plug connection is accessible.
    G15534432Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs

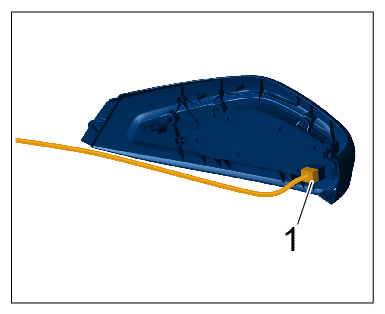

  4. Release and unplug electric plug connection -11-  .
    G15534433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
