Removing Air Cushion For Seat

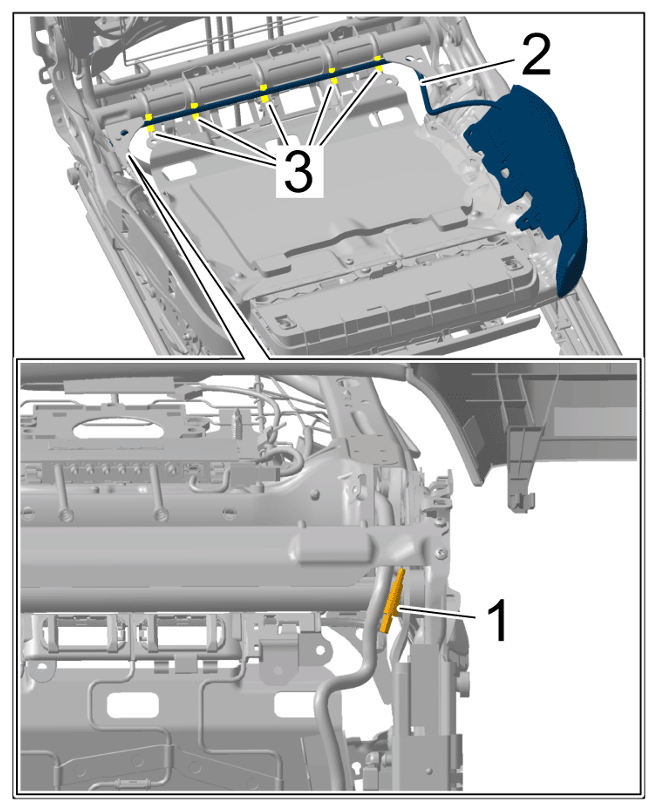

  1. Detach air cushion for seat.
    1. 1.1  Release and disconnect hose connection -1-  from air cushion for seat.
    2. 1.2 Only for air cushion for left seat:

      Disengage air line -2-  from line brackets -3-  .

      G15534425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air cushion for seat

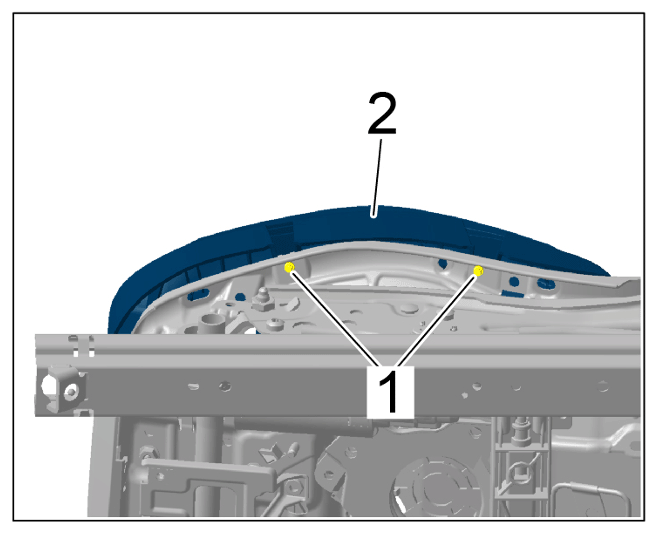

  2. Unscrew screws -1-  and remove air cushion for seat -2-  .
    G15534426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for seat
