Removing Front Seat
- Triggering of airbag unit.
- System faults can occur.
→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).
→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.
→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.
→ Wait 1 minute after disconnecting the battery.
→ Only pull off connector on the triggering unit after the waiting time has elapsed.
→ Make sure that no foreign objects are located in front of the airbag unit during installation.
→ Replace damaged parts during removal.
→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.
→ Do not position anything on the airbag units.
→ If removed for an extended period, the airbag units must be stored in a safe place.
→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.
→ Do not expose airbag units to temperatures of more than 90°C.
→ Do not remove the short-circuit spring on the plug-in contacts.
→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.
→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.
Incorrect line routing
- Risk of damage to lines and hoses
- Malfunction and fault memory entry on control unit
→ Avoid small bending radii when routing lines.
→ File down edges and burrs in the routing area or mask them with adhesive tape.
→ Maintain a sufficient distance from components exposed to high temperatures while driving.
- Move front seat to its rear end position.

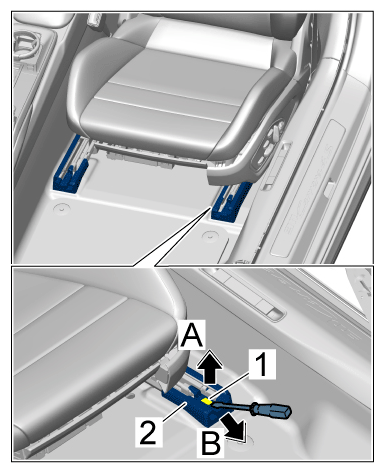

- Remove seat rail cover -2-
.
Information
Make sure not to break off any of the locking lugs when releasing them.

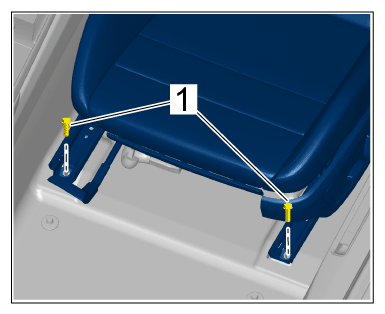

- Unscrew and remove screws -1-
.
Screws
- Move font seat to its front end position.

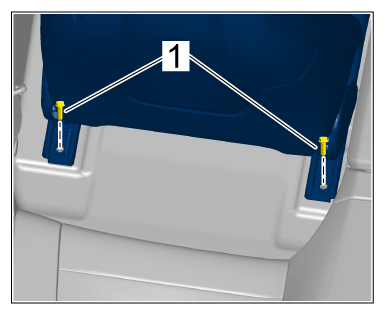

- Unscrew and remove screws -1.
Screws
- Loosen battery ground strap.
- Carefully tilt the front seat to the rear until the electric plug connection is accessible.
Information
The number of plug connections can vary, depending on equipment.

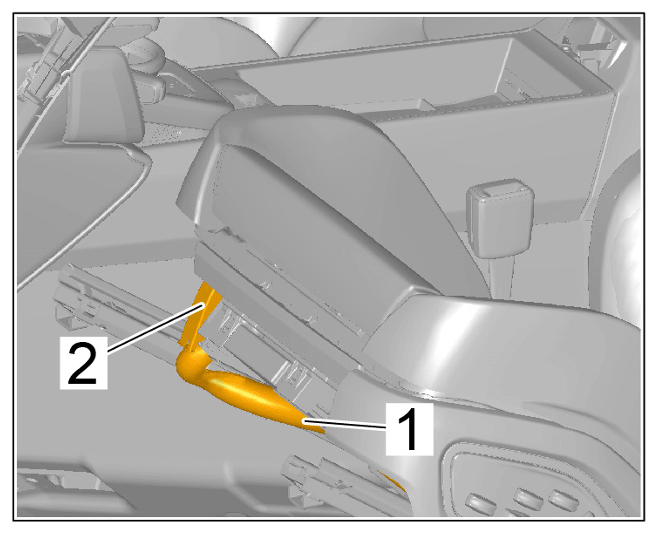

- Disconnect wire harness -1 .
- Remove front seat.
