Removing Fire Extinguisher

  1. Remove fire extinguisher from tray.
  2. Move front seat to the uppermost position.

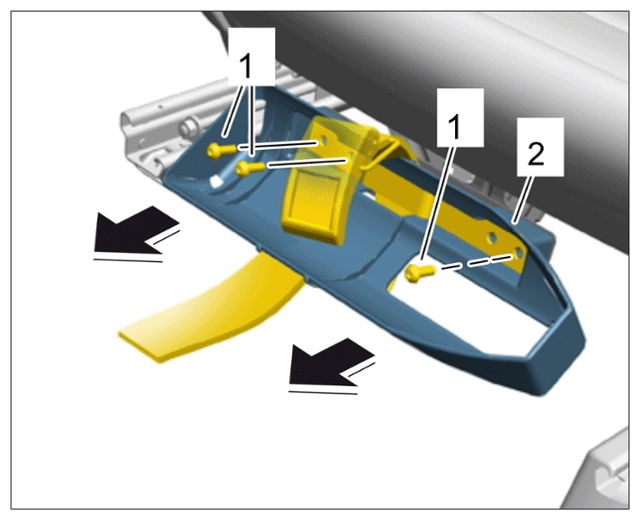

  3. Unscrew screws -1-  and remove fire extinguisher tray -2-  . -Arrow-
    G15533566Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing fire extinguisher tray

  4. Unscrew screws -1-  and remove fire extinguisher holder -2-  .
    G15533567Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fire extinguisher holder
