68 Interior Equipment -- 992 - 911 CARRERA (992)
>>
WM, 684819 Removing And Installing Rear Package Box Cover
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

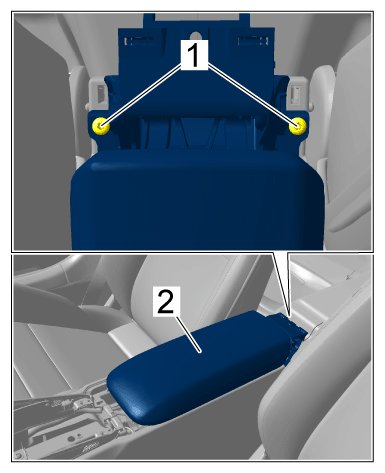

Rear package box cover to center console
Item 1
Tightening torque
7.8 Nm (5.7 ftlb.)
+/- 0.8 Nm (0.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
