68 Interior Equipment -- 992 - 911 CARRERA (992)
>>
WM, 684419 Removing And Installing Tunnel Support
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

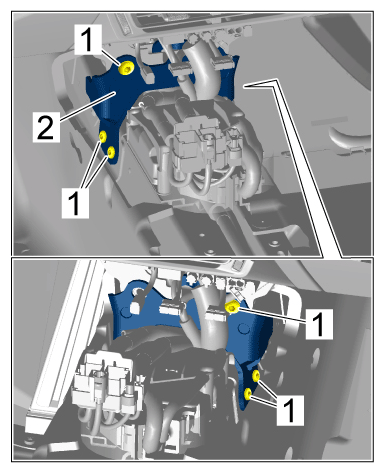

Screws securing tunnel support to center tunnel
Item 1
Tightening torque
23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
