Removing Centre Console Cover

  1. Unclip center console cover -1-  using a plastic wedge.

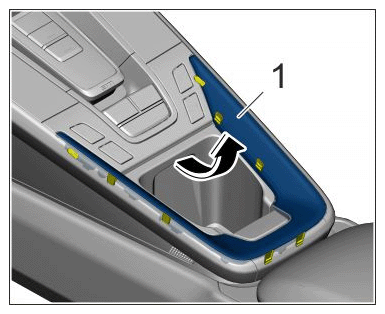

    G15533537Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre console cover

  2. Swivel out center console cover.
  3. Remove center console cover.
