Removing Centre Console (Lower Part)

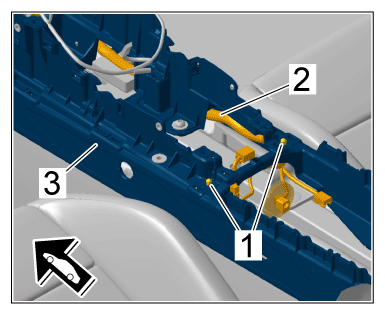

1. 1.1  Loosen clips -1-  .
2. 1.2  Remove electric wire harness -2-  from center console (lower part) -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

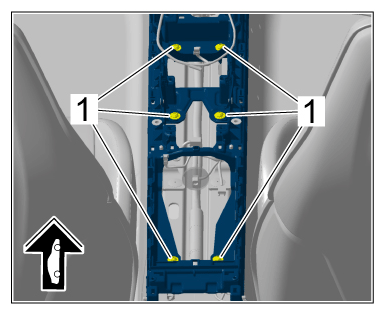

Screws

Information

The number of electric plug connections will vary depending on equipment.

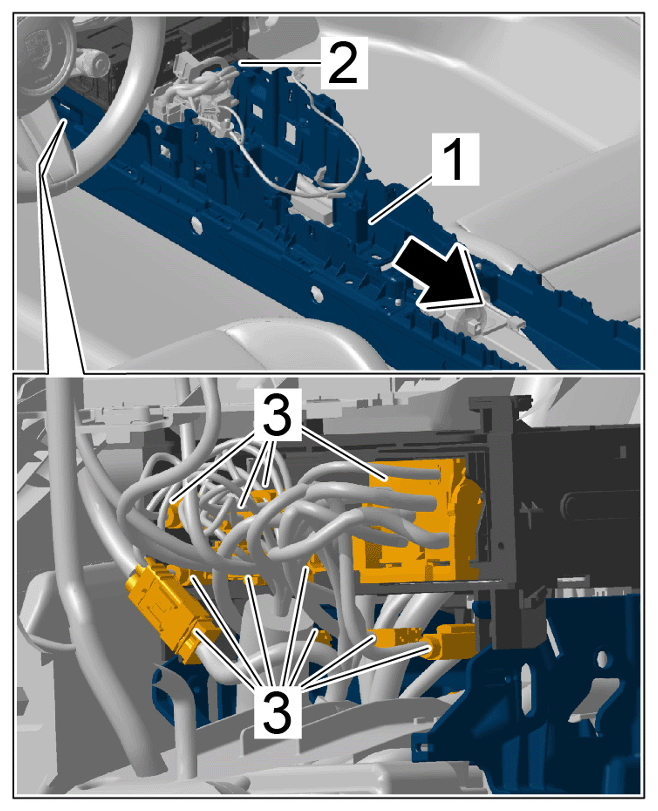

1. 3.1  Pull out center console (lower part) -1-  with central computer -2-  (-arrow-  ) until the electric plug connections -3-  are accessible.
2. 3.2  Release and unplug electric plug connections -3-  .
3. 3.3  Remove center console (lower part) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections
