Removing Centre Console (Upper Part)

Information

Shown on the left side.

Right side same as left side.

1. Remove left and right knee cushion -1-  .
   1. 1.1  Unscrew screw -2-  .
   2. 1.2  Unclip knee cushion -1-  and remove it by pulling it upwards.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Knee cushion

2. Loosen center console (upper part).
   1. 2.1  Unscrew screws -1-  .
   2. 2.2  Release and disconnect electric plug connection -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Centre console (upper part)

3. Remove center console (upper part) -2-  .
   1. 3.1  Open cover on storage compartment -1-  .
   2. 3.2  Pull center console (upper part) -2-  to the rear -arrow A-  and remove it by pulling it upwards -arrow B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

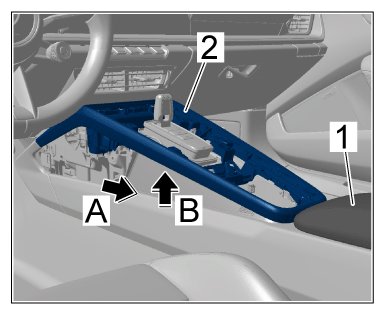

      Cover on storage compartment
