Removing (Rear) Package Box

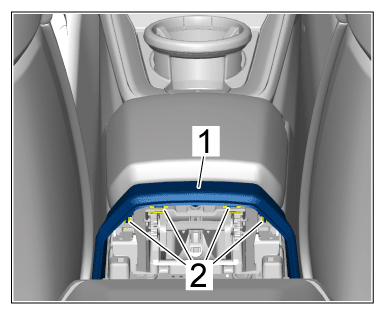

  1. Unclip cover on rear center console -1-  by pulling it up -2-  .
    G15533519Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear center console cover

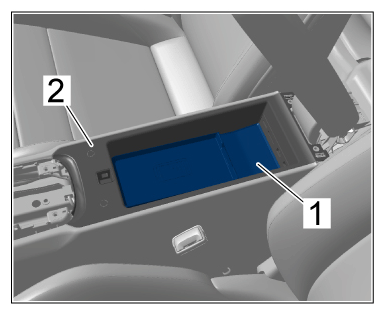

  2. Remove insert -1-  from (rear) package box -2-  .
    G15533520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Insert

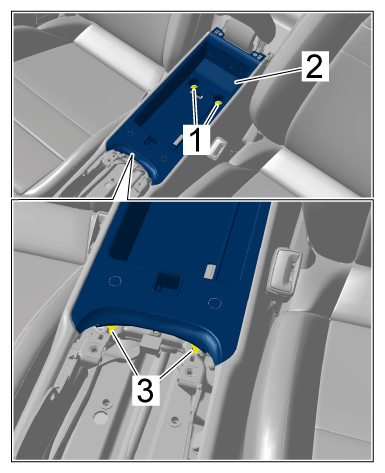

  3. Loosen (rear) package box -2-  .
    1. 3.1  Unscrew and remove screws -1-  .
    2. 3.2  Unclip (rear) package box -2-  at the front -3-  .
      G15533521Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws

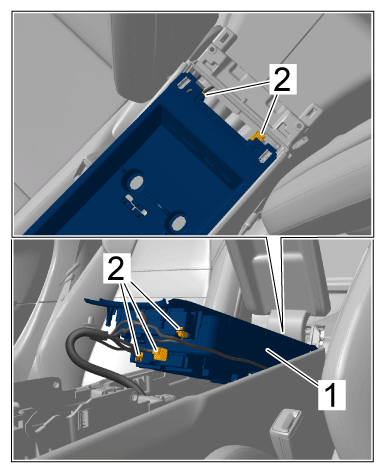

  4. Remove (rear) package box -1-  .
    1. 4.1  Lift up (rear) package box -1-  until the electric plug connections -2-  are accessible.
    2. 4.2  Release and unplug electric plug connections -2-  .
    3. 4.3  Remove (rear) package box -1-  .
      G15533522Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Package boxes (rear)
