Removing Glove Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws

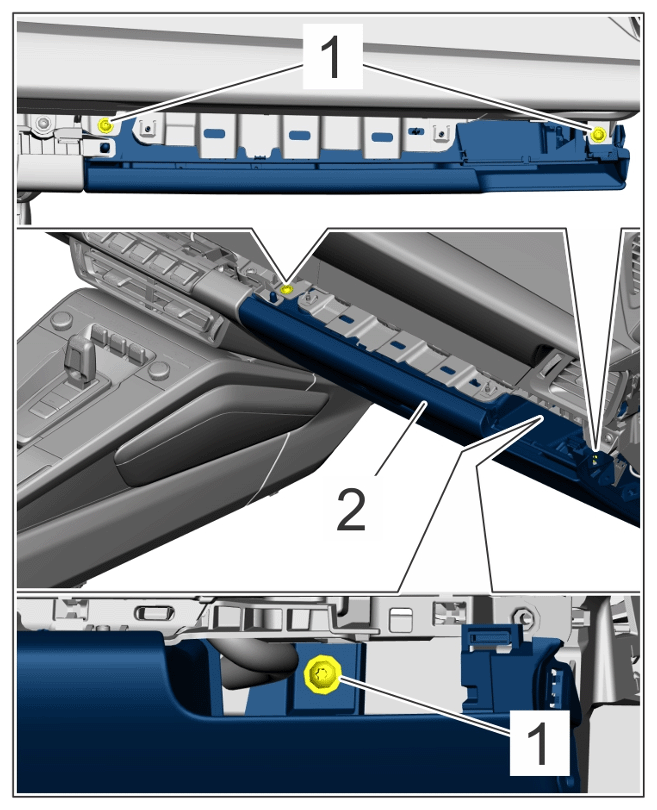

1. 2.1  Unscrew top screws -1-  on glove compartment -2-  .
2. 2.2  Release locking lug -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws

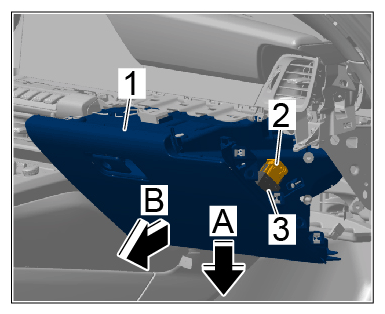

1. 3.1  Swivel glove compartment -1-  down -arrow A-  and to the rear -arrow B-  until the electric plug connection -2-  is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Glove box

2. 3.2  Release and disconnect electric plug connection -2-  from airbag switch -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Glove box

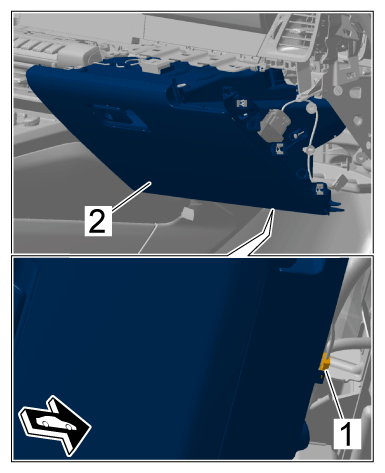

3. 3.3  Release and disconnect electric plug connection -1-  at the back of the glove compartment -2-  and remove glove compartment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
