Removing Centre Console Trim

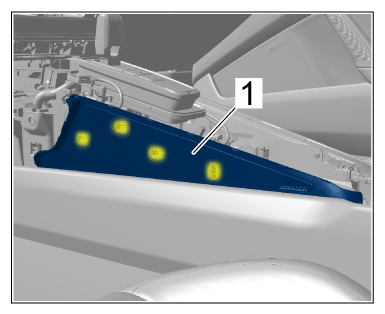

1. 1.1  Unclip center console trim panel at the sides -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre console trim panel at the sides

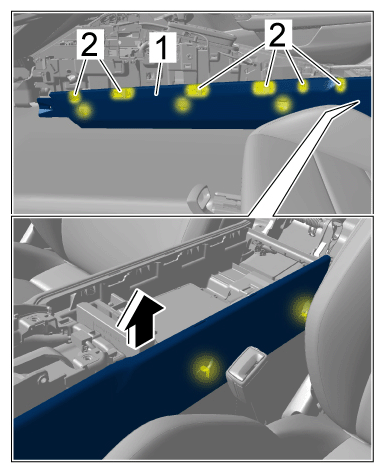

2. 1.2  Swivel out center console trim panel at the sides -1-  and remove it by pulling it upwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre console trim panel at the sides

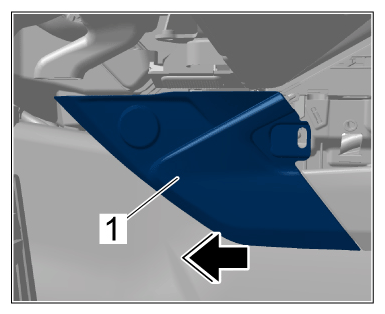

1. 2.1  Slide front center console trim -1-  forward -arrow-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front center console trim

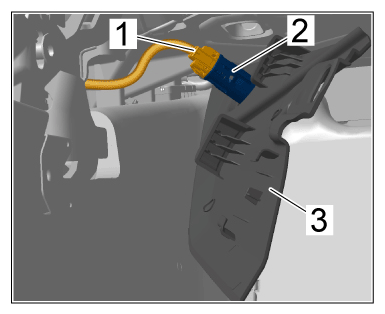

Release and disconnect electric plug connection -1-  from plug socket -2-  and remove center console trim at the front right -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug socket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

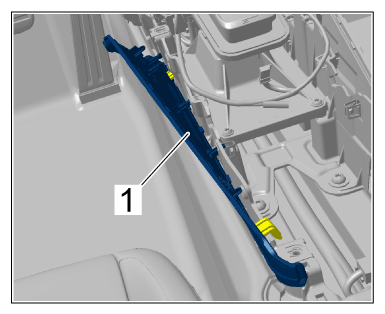

Centre console trim
