Removing Glove Compartment Lid

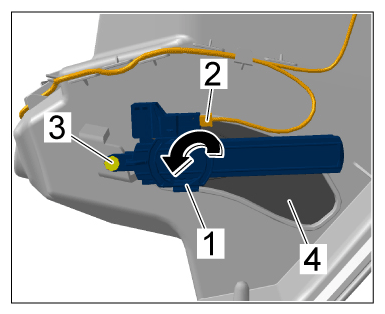

- Remove brake -1-
for glove compartment lid -4-
.
- 1.1 Release and unplug electric plug connection -2- .
- 1.2 Pull out retaining pin -3- on brake -1- for glove compartment lid -4- .
- 1.3 Open glove compartment lid -4- .
- 1.4
Turn brake -1-
for glove compartment lid -4-
(-arrow-
) and remove it from glove compartment lid -4-
.
Brake for glove compartment lid

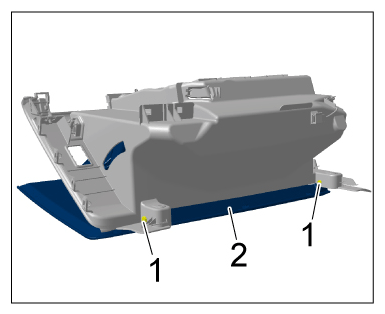

- Pull fastening bolts -1-
out of the glove compartment lid -2-
.
Fastening bolts

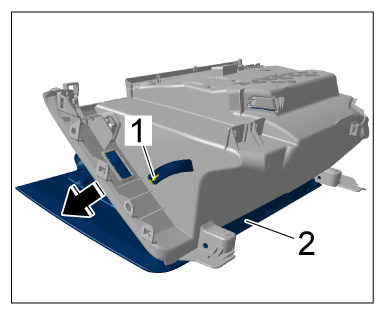

- Press in limit stop -1-
on glove compartment lid -2-
and remove glove compartment lid -2-
(-arrow-
).
Limit stop
