Removing Glove Compartment Lock

Information

The rubber stop on the handle can loosen or fall out when removing the safety clip.

Fit rubber stop again correctly.

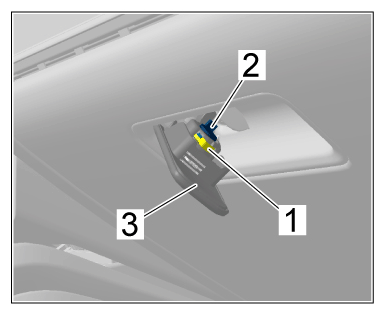

1. Remove safety clip -1-  for glove compartment lock -2-  .
   1. 1.1  Open handle -3-  and keep it open.
   2. 1.2  Pull out safety clip -1-  using > 3438 - hook  and remove it from the handle -3-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Safety clips

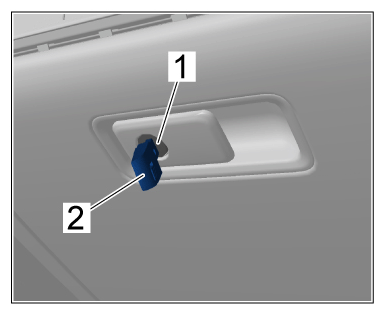

2. Remove glove compartment lock -1-  .
   1. 2.1  Remove emergency key -2-  from the driver's key.
   2. 2.2  Insert emergency key -2-  into the glove compartment lock -1-  .
   3. 2.3  Pull glove compartment lock -1-  with emergency key -2-  out of the handle.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Emergency key
