Installing Glove Compartment Lock

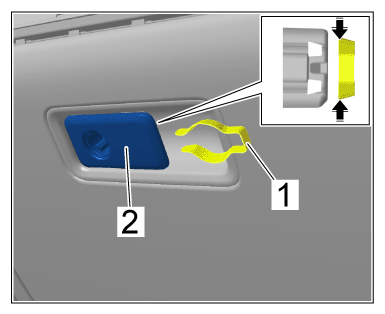

- Install safety clips -1-
.
- 1.1 Open handle -2- and keep it open.
- 1.2 Align safety clip -1- with the wide opening towards the lock -Arrows- .
- 1.3
Insert safety clip -1-
into the handle -2-
.
Safety clips

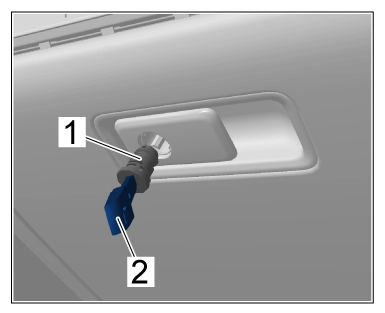

- Insert glove compartment lock -1-
with emergency key inserted -2-
into the handle until it engages securely.
Emergency key
- Perform a function test with the glove compartment lid open.
