Installing Cover Strip

  1. Pull protective film off the bonding surfaces -1-  .
    G15533486Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding surfaces

    Information

    Bonding surfaces must be clean and free of grease.

  2. Centre the cover strip -2-  using guide mandrels -3-  and stick it on.

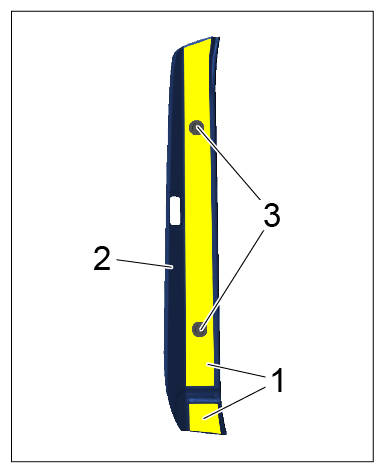

    G15533487Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover strip

  3. Press cover strip on firmly.
