Removing Rear-View Mirror

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

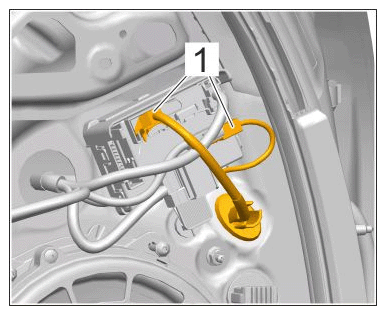

Release and disconnect electric plug connection for rear-view mirror.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for rear-view mirror

Information

The adhesive pad cannot be pulled off without damaging it and must always be replaced.

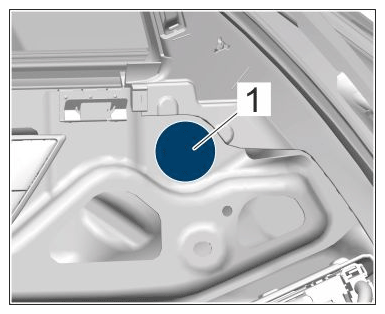

Pull off adhesive pad -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off adhesive pad

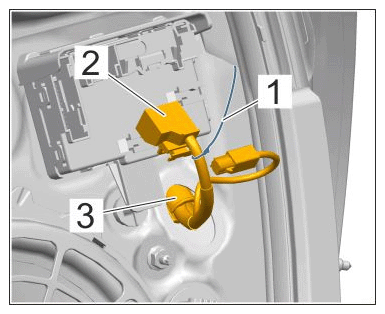

Press rubber sleeve -3- on wire harness into the door.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening wire harness
Tie cord -1- onto the plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening wire harness

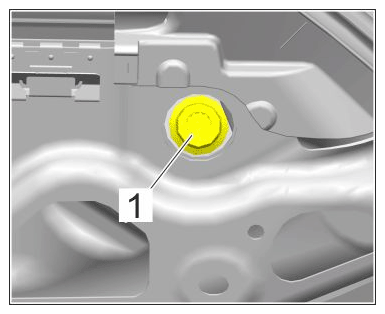

Unscrew screw on rear-view mirror -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear-view mirror

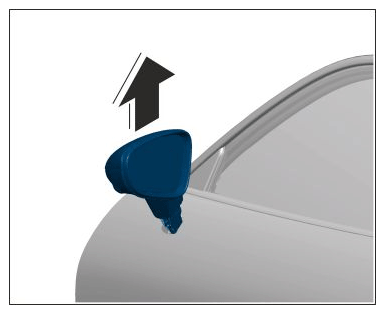

Remove rear-view mirror.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear-view mirror
1. 6.1 Lift the rear-view mirror up and off.
2. 6.2 Pull wire harness out of the door.
3. 6.3 Detach the cord (remains in the door).
