Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws on rear-view mirror housing (upper part) Item 1 Tightening torque 0.5 Nm (0.35 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15533442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

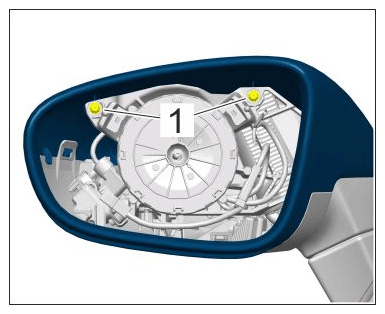

Screws on rear-view mirror housing (upper part)
