Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw on rear-view mirror housing (lower part) Item 1 Tightening torque 0.5 Nm (0.35 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

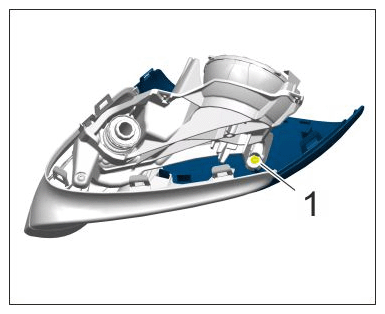

G15533449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)
