Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

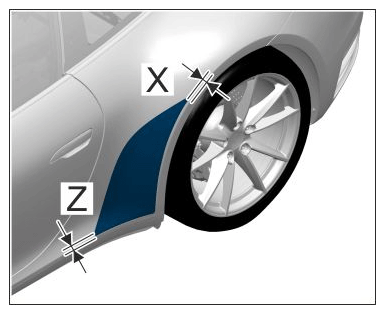

| Gap dimension from outer edge of film to radial run-out line | Gap dimension X | 2 mm | +/- 1 mm | ||
|
Affixing stone guard film |
|||||
| Gap dimension from lower edge of film to upper edge of stone guard film | Gap dimension Z | 2 mm | +/- 1 mm | ||
|
Affixing stone guard film |
