Affixing Stone Guard Film
Information
Affixing area:
- Room temperature: 18 - 30°C.
- Humidity 40% - 60% relative humidity.
Information
Vehicle for affixing:
- Acclimated to room conditions.
- Wear clean gloves when affixing so that there will not be any visible finger prints on the film.
Information
Application fluid:
- 3 drops of non-lubricating washing-up liquid in 1, 000 ml distilled water.
- Or mix 25 - 30% isopropanol with distilled water.
Information
- Immediately before sticking on, wash off the areas on which you intend to stick the seal using isopropanol to ensure that all traces of silicone, grease and oil are completely removed.
- Clean the paint surface for the stone guard film and rub it dry using a lint-free, moisture-absorbing cloth.

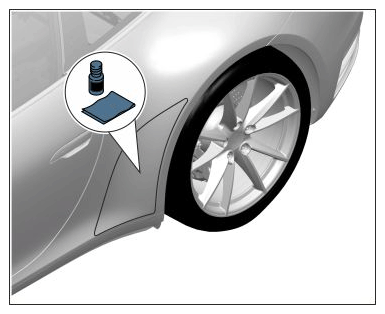

Cleaning paint surface
- Coat the surface on which you intend to affix the film with application fluid after cleaning.
Information
The film must be affixed immediately after spraying.
- Pull off film for stickers and coat the bonding surface of the film with the application fluid.

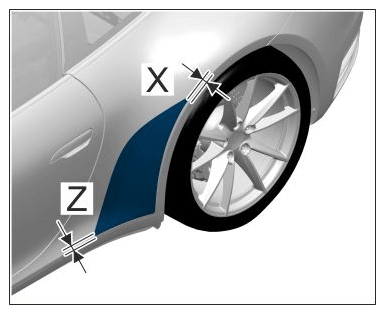

- Affix the film on the vehicle to the dimension -X- > Gap dimension X 2 mm +/- 1 mm
and -Z- > Gap dimension
Z 2 mm +/- 1 mm and press on lightly.
The position can still be adjusted slightly.
Affixing stone guard film
Information
- The film must be applied without bubbles, and no water may remain between the paint surface and adhesive.

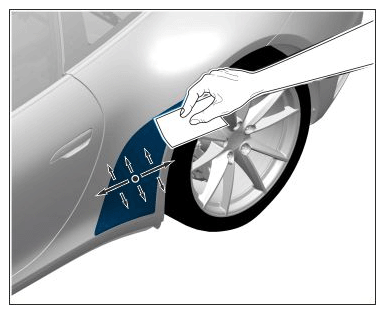

- Press on the film from the inside out using a plastic squeegee in order to squeeze out the water -Arrows-
.
Pressing on protective film
- The adhesive is activated by the pressure of the squeegee. The contact pressure should be at least 2 kg.
- After affixing, pull off the thin protective film.
- Dry off the entire surface with a lint-free, moisture-absorbing, non-scratch cloth.
- Check the affixed film for bubbles and defects.
The film must be firmly affixed to the vehicle.
- Check that the corners are affixed correctly (press them down again if necessary).
