66 Exterior Equipment -- 992 - 911 CARRERA (992)
>>
WM, 667419 Removing And Installing Control Unit For Rear Spoiler
>>
Removing Control Unit For Rear Spoiler
Removing Control Unit For Rear Spoiler

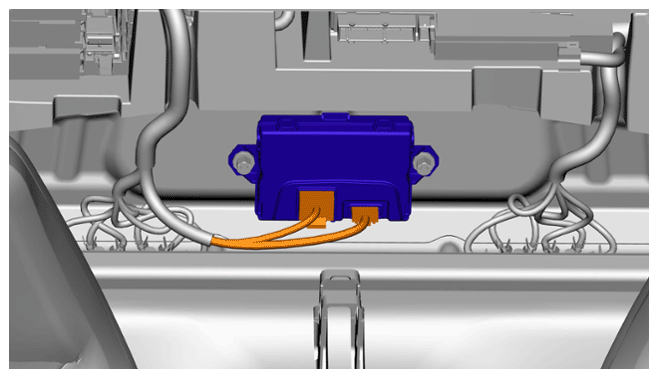

Release and disconnect electric plug connections.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric plug connections

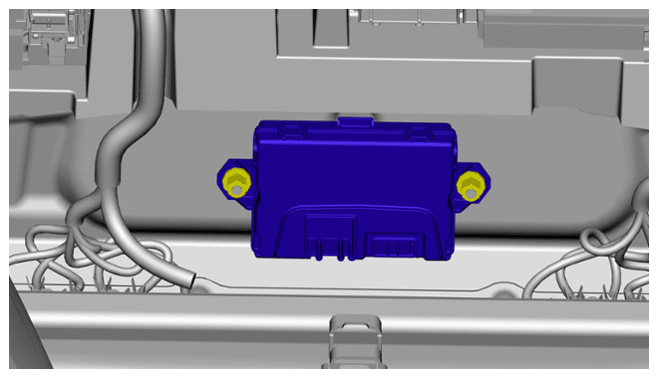

Unscrew nuts and remove control unit for rear spoiler.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Control unit for rear spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
