WM, 667419 Removing And Installing Control Unit For Rear Spoiler: Information
The control unit for rear spoiler for the 992 Cabriolet/Coupe and the 992 Targa/Turbo have different sizes and a different number of electrical connections.
The installation position of the control unit for rear spoiler is identical on all 992 derivatives (under the rear-wall lining, bottom, centre).
The control unit for the Targa roof is also integrated into the control unit for rear spoiler on the 992 Targa. In other words, the control unit for rear spoiler and the Targa roof control unit are one component on the 992 Targa.
The control unit for rear spoiler is also responsible for activating the front spoiler.

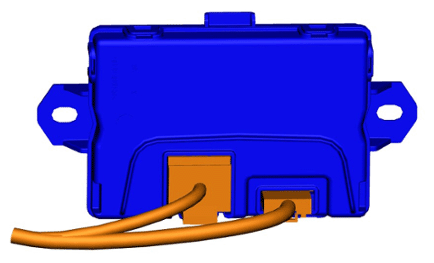

Control unit for rear spoiler 992 Cabriolet/Coupe

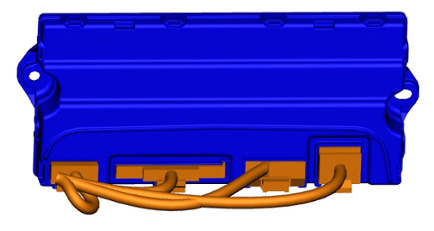

Control unit for rear spoiler 992 Targa/Turbo
