Removing (Lower Part Of) Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

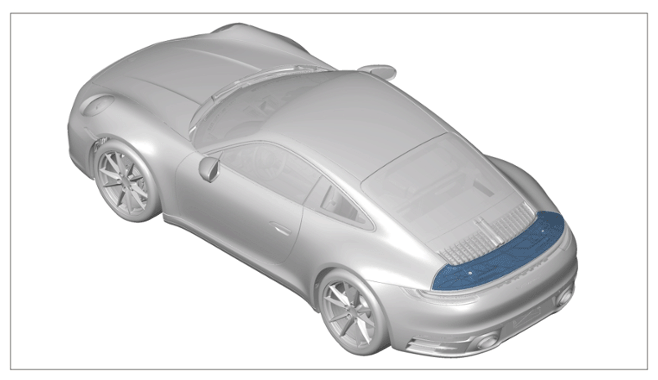

Installation position

1. Remove cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

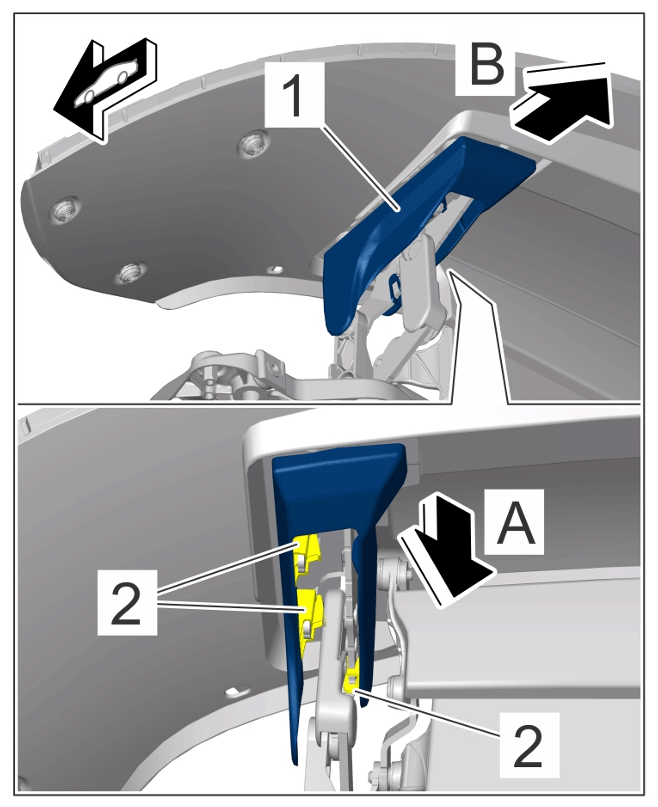

   Cover

   1. 1.1  Unclip locking lugs -2-  using a suitable tool. -arrow B-
   2. 1.2  Remove cover -1-  . -arrow B-
2. Loosen rubber sleeve -1-  and guide out wiring harness -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

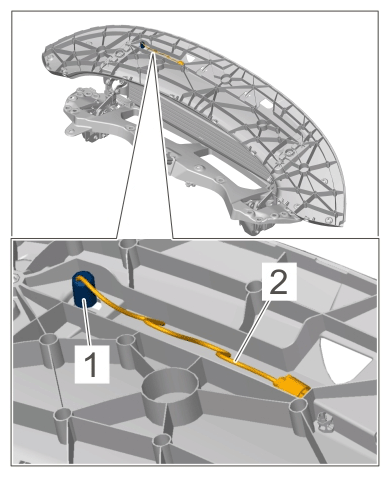

   wiring harness

3. Unscrew screws -1-  and remove (lower part of) rear spoiler -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

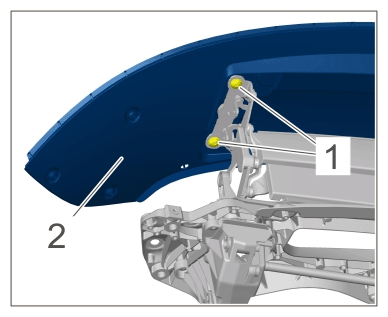

   Screws
