66 Exterior Equipment -- 992 - 911 CARRERA (992)
>>
WM, 66581903 Removing And Installing (Upper Part Of) Rear Spoiler
>>
Removing (Upper Part Of) Rear Spoiler
Removing (Upper Part Of) Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

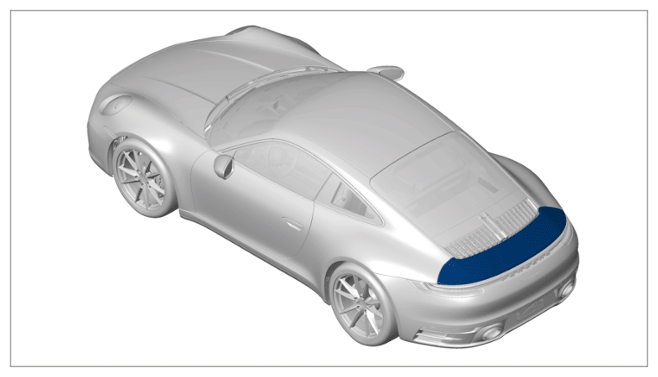

Installation position
Extend the rear spoiler fully.
Carefully lever off covers on screws using a suitable tool.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

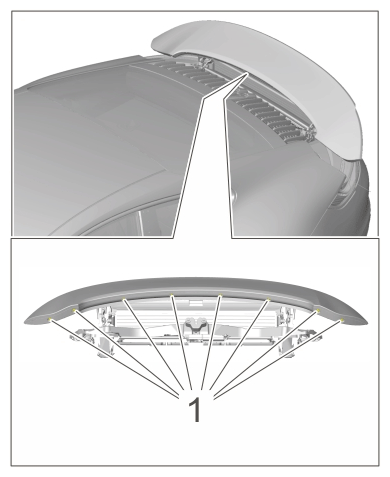

Covers on screws
Unscrew screws.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Remove (upper part of) rear spoiler by pushing it to the rear.
