Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 66 Exterior Equipment -- 992 - 911 CARRERA (992) >> WM, 66581900 Removing And Installing Rear Spoiler >> Removing Rear Spoiler

Removing Rear Spoiler

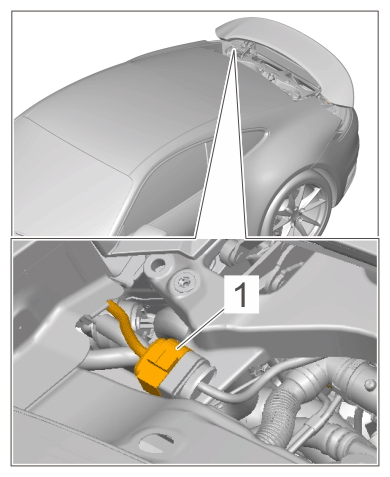

  1. Release and unplug electric plug connection -1-  .
    G15533401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew and remove screws.
    G15533402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

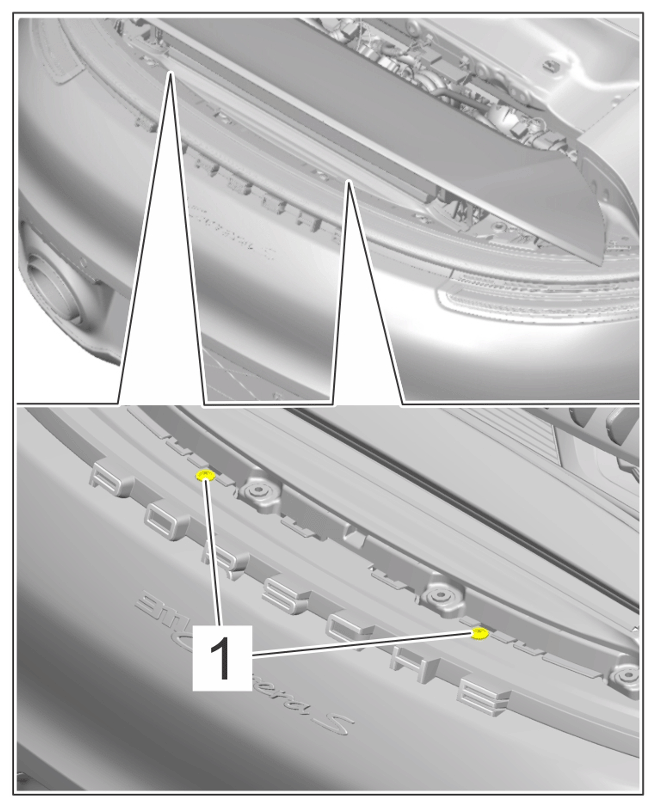

  3. Unscrew and remove screws -1-  .
    G15533403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Swivel out the rear spoiler.
