Installing Rear Spoiler

  1. Move rear spoiler into installation position.
  2. Screw in and tighten screws -1-  .

    > Tightening torque 23.7 Nm (18 ftlb.)

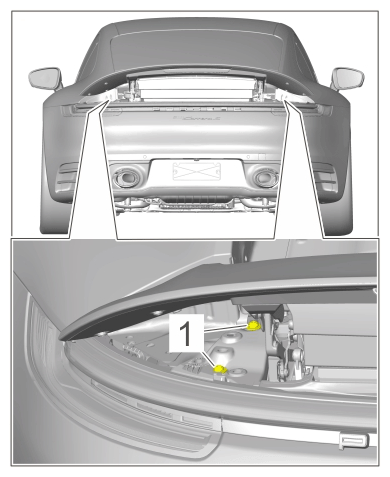

    G15533405Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Screw in and tighten screws -1-  .

    > Tightening torque 3.2 Nm (2.4 ftlb.)

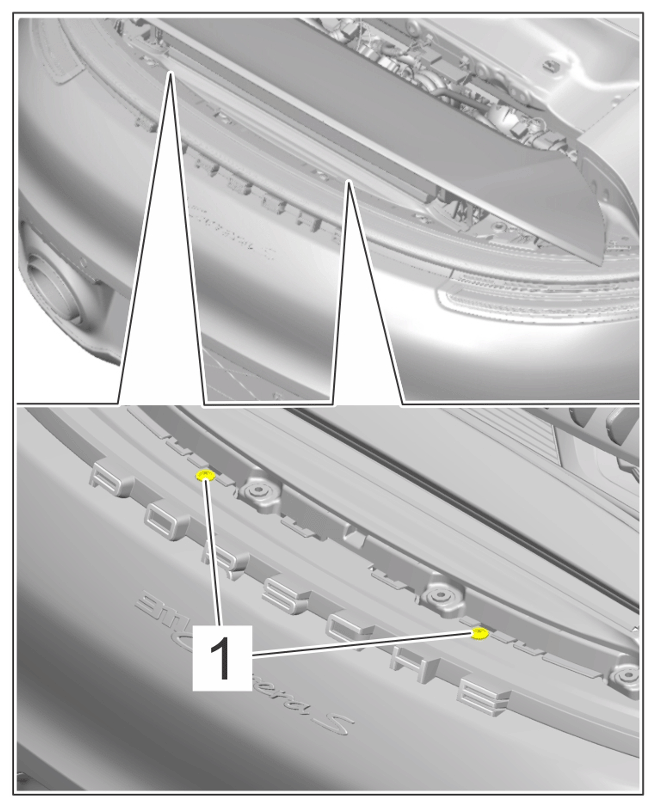

    G15533406Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws
