Adjusting Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

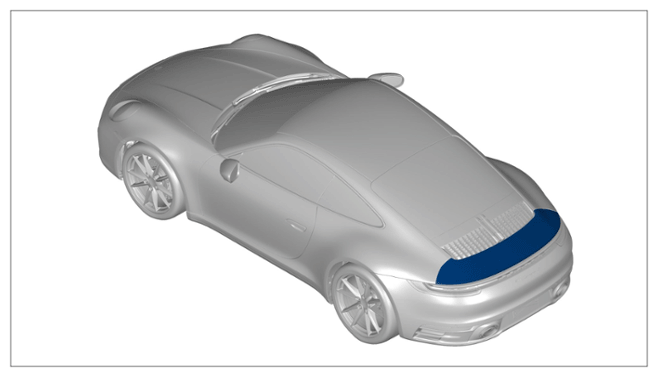

Installation position

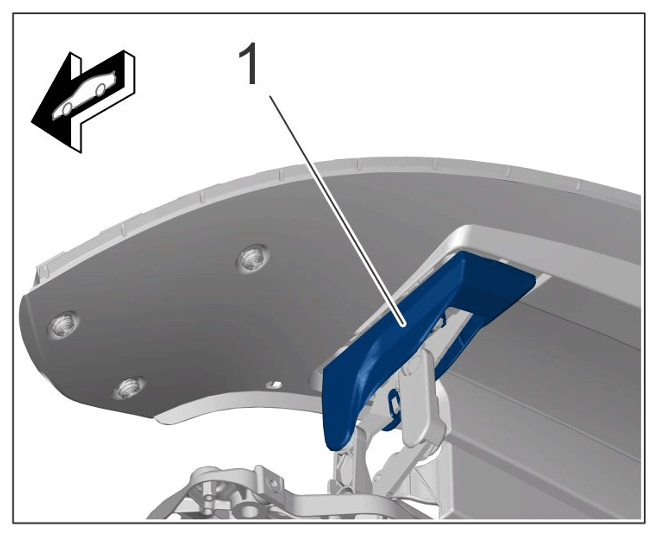

1. Remove cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

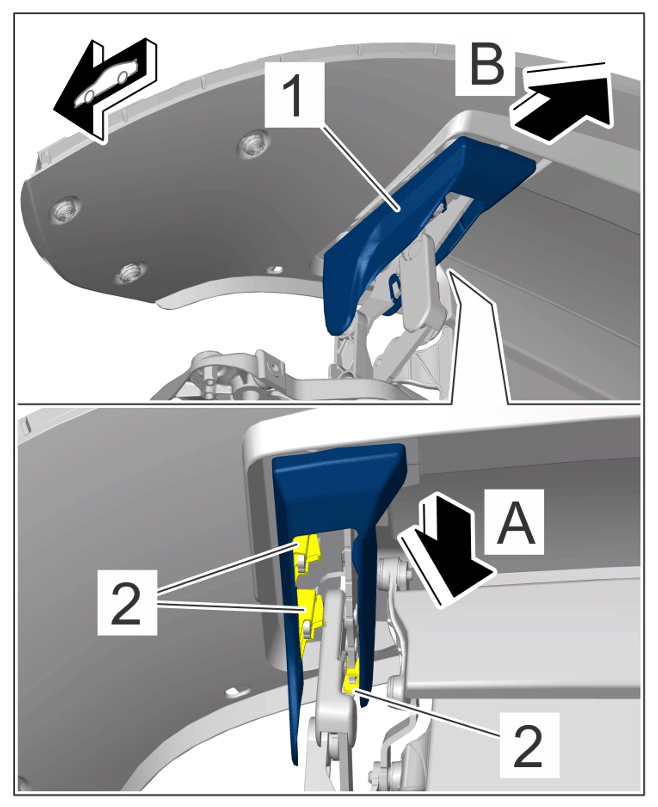

   Cover

   1. 1.1  Unclip locking lugs -2-  using a suitable tool.
   2. 1.2  Remove cover -1-  . -arrow-
2. Loosen screws -1-  on rear spoiler (lower part) -2-  and then tighten them again.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

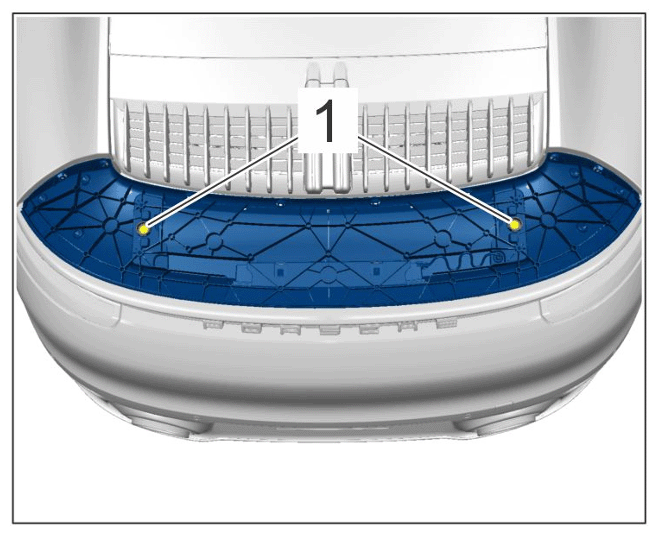

   Screws

3. Loosen screw and then tighten it again.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

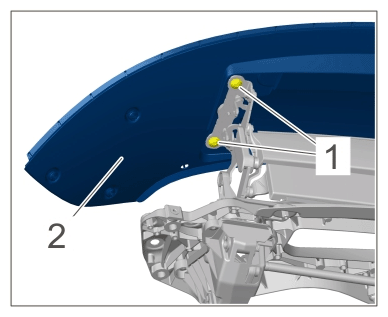

   Rear spoiler (lower part)

4. Fit rear spoiler (upper pat).
5. Set gap dimensions

   >  WM, 5X00IN41 GAP DIMENSION

   by moving the rear spoiler -1-  . -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

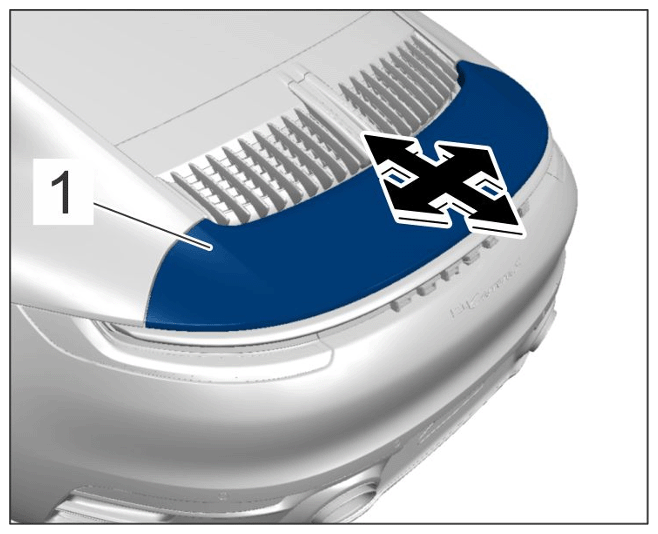

   Gap dimension

6. Remove rear spoiler (upper part).
7. Tighten screws to > Tightening torque 4 Nm (3 ftlb.)  .
8. Fit rear spoiler (upper part) and check gap dimensions.
9. Tighten screws to > Tightening torque 8 Nm (6 ftlb.)  .
10. Clip in cover -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover
