Positioning Logo With Logo Template

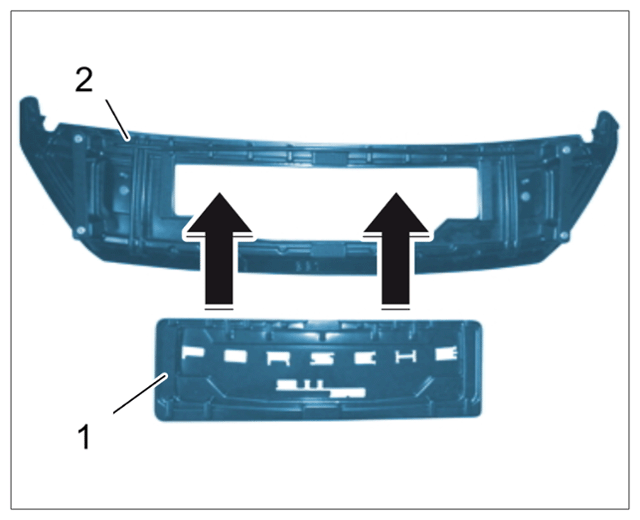

  1. Insert the relevant interchangeable insert -1-  into logo template -2-  .
    G15533386Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing logo template (shown on the 991)

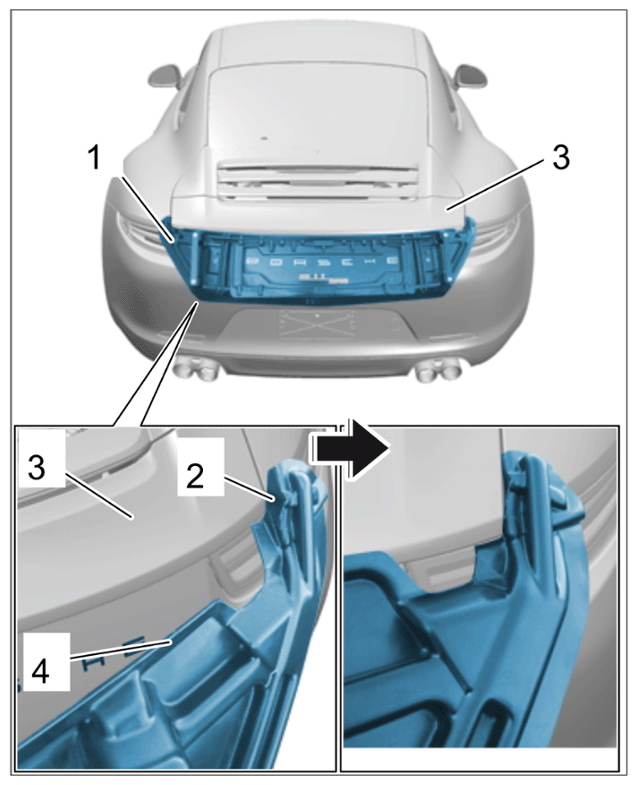

  2. Position the logo template -1-  on the vehicle.
    G15533387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positioning logo template (shown on the 991)

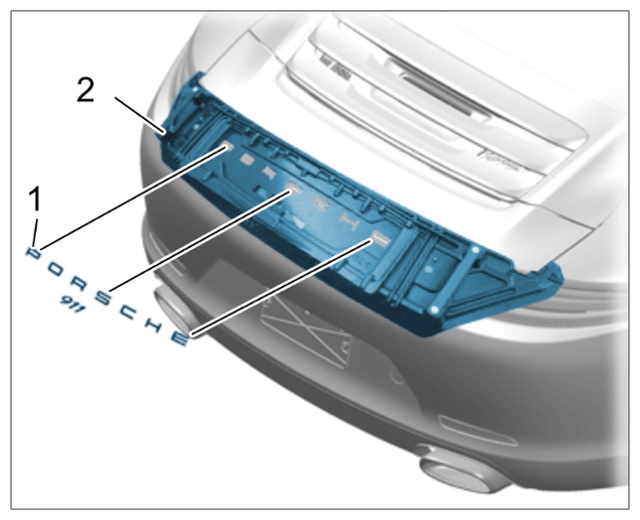

  3. Remove protective paper from the logo -1-  .
  4. Align the logo -1-  using the logo template -2-  and press it on firmly.
    G15533388Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Affixing logo (shown on the 991)

  5. Remove logo template from the vehicle.
