Removing Rear Logo

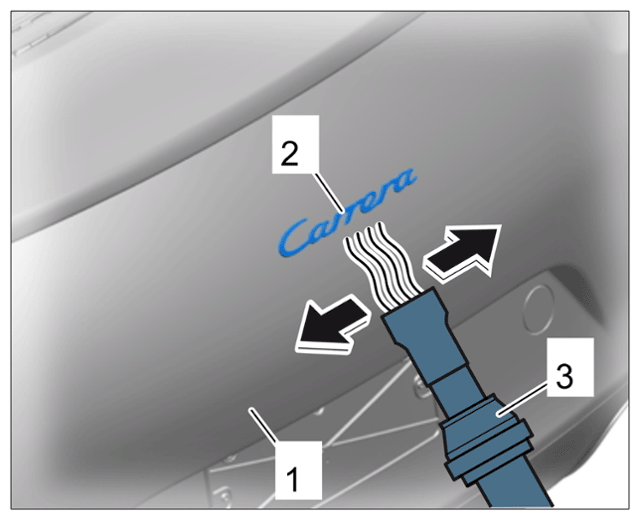

  1. Heat the area -1-  around the logo -2-  using the > V.A.G 1416 - hot-air blower-3-  .
    G15533382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating area around the logo (shown on the 991)

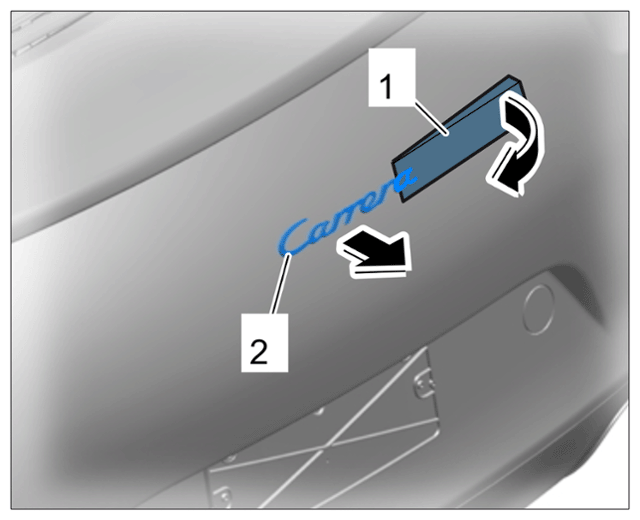

  2. Pull off the logo using a plastic spatula.
    G15533383Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Prising off logo (shown on the 991)

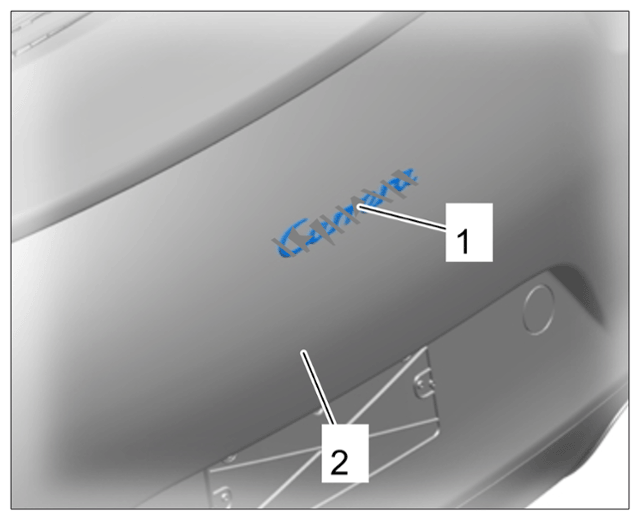

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
    G15533384Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cleaning logo area (shown on the 991)
