Installing Rear Logo

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least > Nominal value + 15°C  .
• Humidity should be > Nominal value 50 % +/- 10 %  .
• Do not touch the bonding surface again after removing the protective paper.
• Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
• The parts must have been bonded for at least > Nominal value 72 h before washing the vehicle in a car wash.

1. Position logo using logo template.

   Logo template 911	> 9987 - Logo template "911"
   Logo template - 911 Carrera	> 9987/1 - Logo template "911 Carrera"
   Logo template - 911 Carrera S	> 9987/2 - Logo template "911 Carrera S"
   Logo template - 911 Carrera 4	> 9987/3 - Logo template "911 Carrera 4"
   Logo template - 911 Carrera 4S	> 9987/4 - Logo template "911 Carrera 4S"
   Logo template - 911 targa 4	> 9987/5 - Logo template "911 targa 4"
   Logo template - 911 targa 4S	> 9987/6 - Logo template "911 targa 4S"
   911 Carrera T  logo template	> P90029 - "Carrera T" logo template

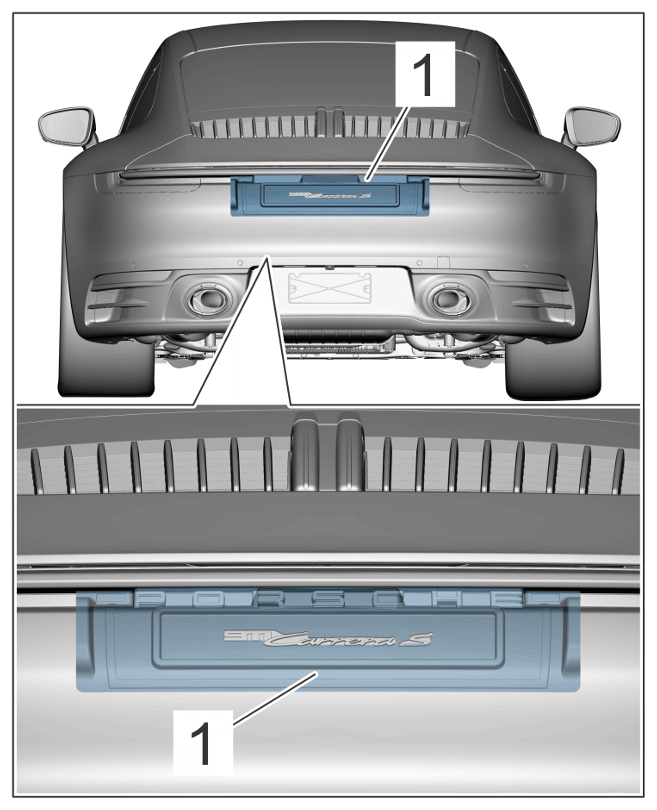

   1. 1.1  Position logo template -1-  on PORSCHE logo.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Logo template

2. Press rear logo on firmly.
