Removing Roof Joint Cover Strip (Sliding Roof Assembly)

Information

The component cannot be removed without damaging it and must always be replaced.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

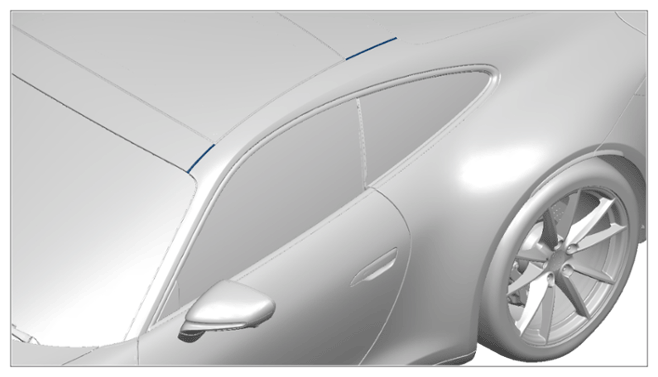

Installation position

1. Cover the add-on parts adjacent to the repair area on the vehicle.
2. Cut off roof joint cover strip -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

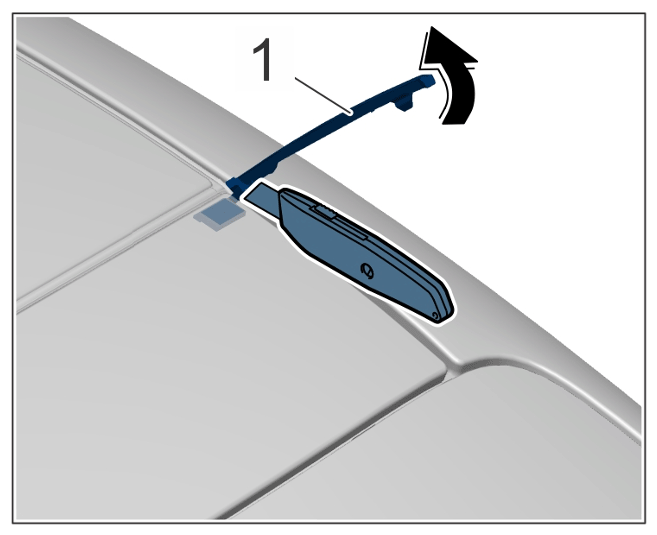

   Roof joint cover strip

   1. 2.1  Fold roof joint cover strip -1-  up -arrow-  .
   2. 2.2  Cut off roof joint cover strip -1-  using a Stanley knife.
   3. 2.3  Remove adhesive residue.

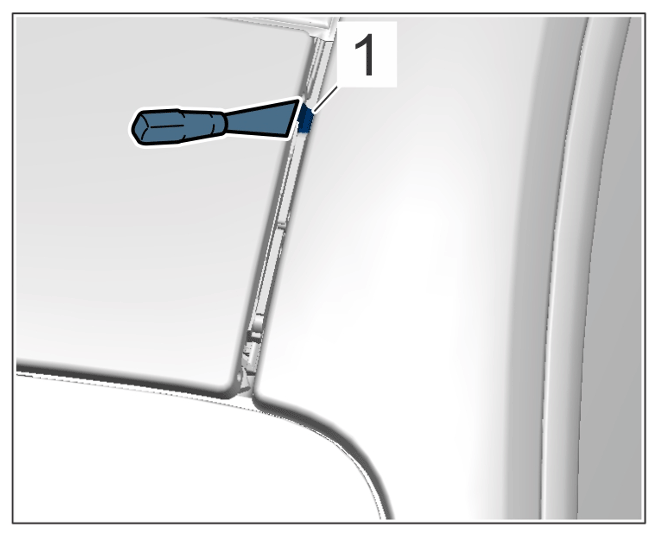

3. Cut off plastic clamp on the roof joint cover strip -1-  using a suitable tool and remove plastic clamp.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plastic clamp
