Installing Roof Joint Cover Strip (Sliding Roof Assembly)

Information

• Immediately before sticking on, wash off the areas on which you intend to stick the seal using isopropanol to ensure that all traces of silicone, grease and oil are completely removed.

1. Position roof joint cover strip with lug of protective film facing outwards.

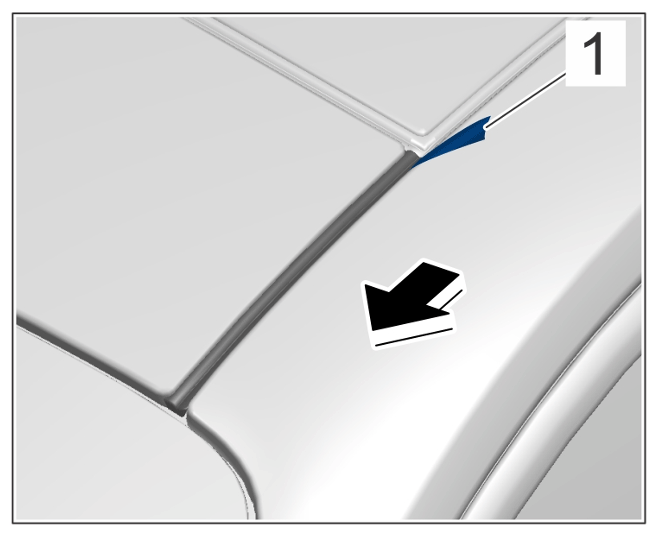

2. Pull off protective film -1-  parallel to the gap -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective film

3. Press roof joint cover strip on using a plastic wedge.
