Removing Roof Joint Cover Strip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

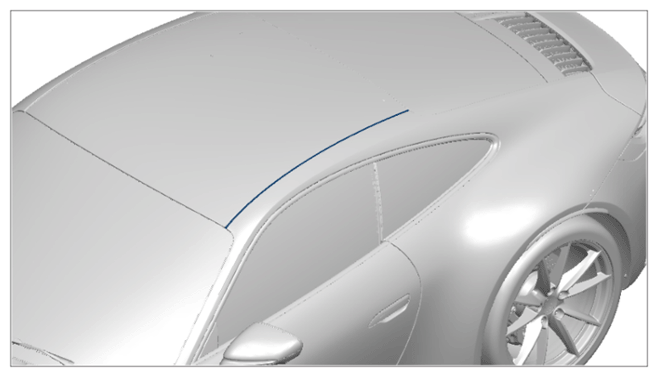

Installation position

1. Cover add-on parts adjacent to lie repair area on the vehicle.

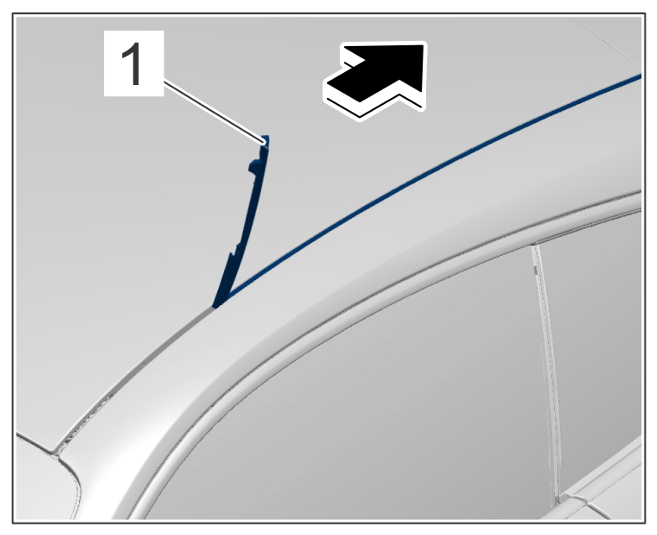

2. Pull out roof joint cover strip -1-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof joint cover strip

3. Remove adhesive residue.

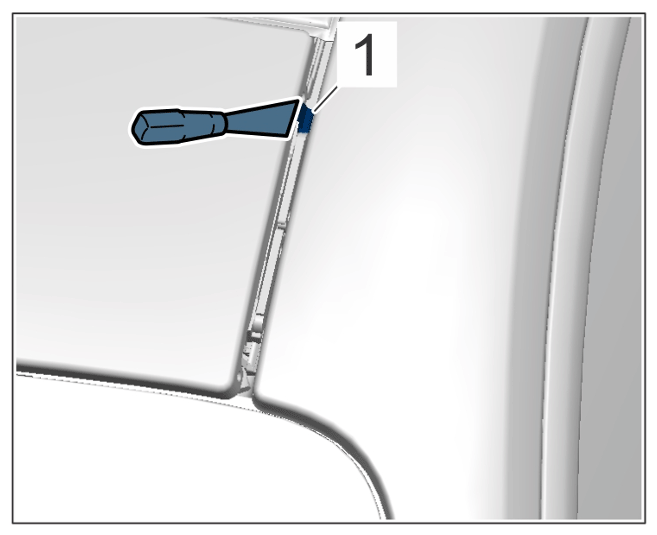

4. Cut off plastic clamp on the roof joint cover strip -1-  using a suitable tool and remove plastic clamp.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plastic clamp
