Installing Roof Joint Cover Strip

Information

• Immediately before sticking on, wash off the areas on which you intend to stick the seal using isopropanol to ensure that all traces of silicone, grease and oil are completely removed.

Information

• The bonding area of the seal and the bonding area on the body part must not be coated with sliding compound.

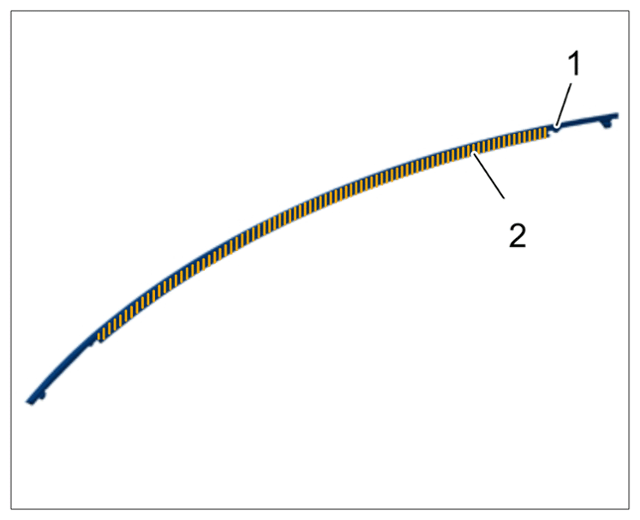

1. Apply sliding compound -2-  to the opposite side of the protective film -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying sliding compound

2. Position roof joint cover strip.
3. The lug of the protective film must be facing outwards.

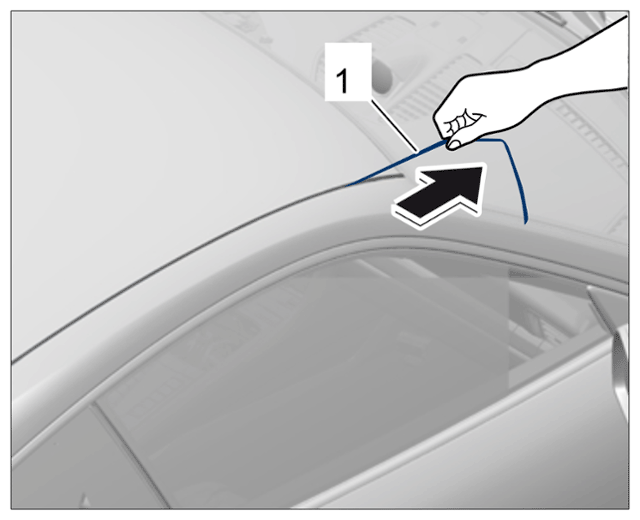

4. Pull off protective film -1-  parallel to the body and press roof joint cover strip on lightly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective film

5. Press on roof joint cover strip from the roof side using a plastic wedge.
