Removing Roof Moulding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

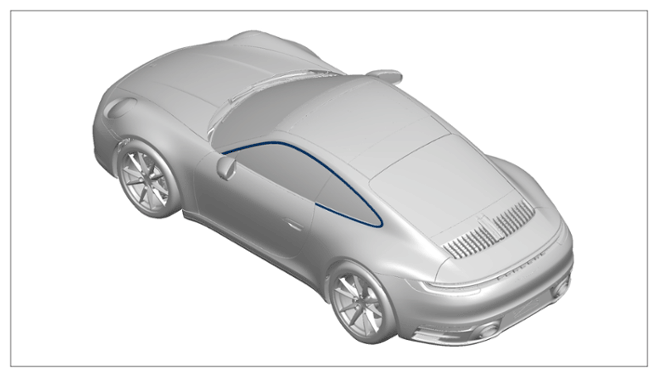

Installation position

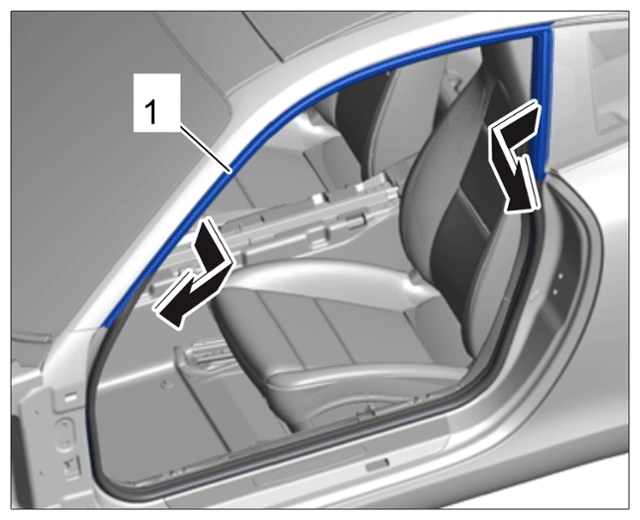

1. Pull rubber seal for door -1-  out of the body in the roof moulding area -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber seal for door (shown on the 991)

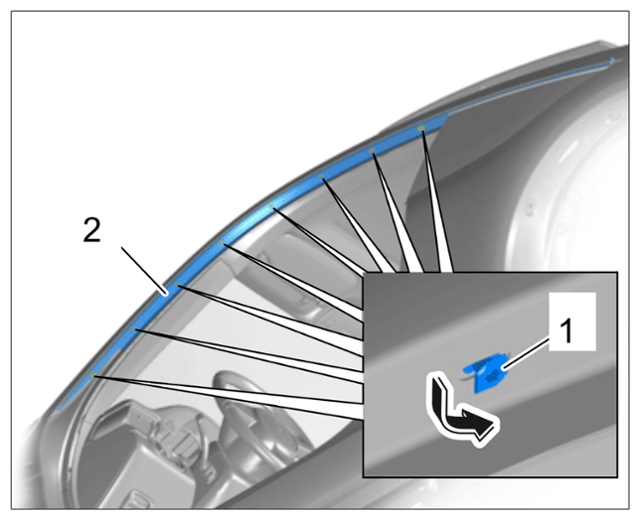

2. Turn clips -1-  along the roof moulding -2-  by 90° using a Torx wrench -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof moulding (shown on the 991)

3. Remove roof moulding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof moulding (shown on the 991)

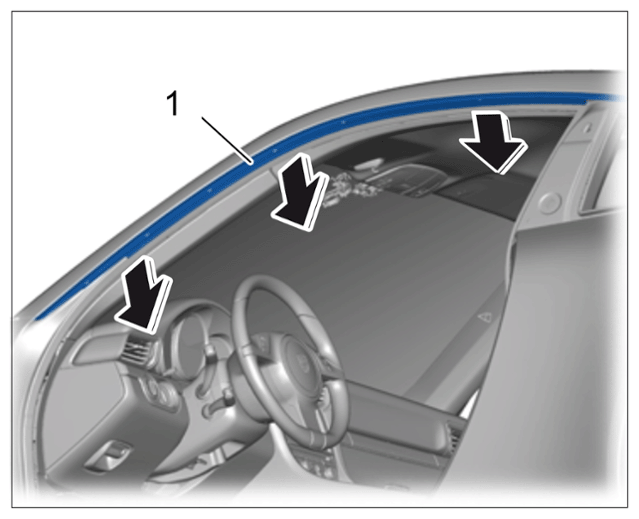

   1. 3.1  Starting at the front, pull the roof moulding -1-  down as far as the B-pillar -Arrows-  . Insert a plastic wedge between the roof moulding and body if necessary.

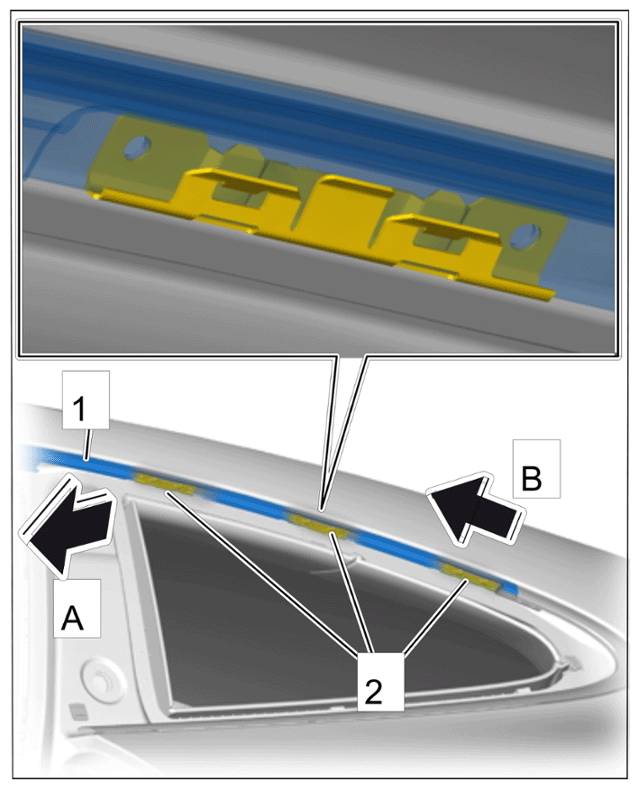

   2. 3.2  Pull the roof moulding -1-  out of the fastening clamps -2-  close to the side window -arrow A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Roof moulding (shown on the 991)

   3. 3.3  Pull roof moulding -1-  forward and remove it -arrow B-  .
